EL5392C

Features:

600MHz -3dB bandwidth
6mA supply current (per amplifier)
Single and dual supply operation,
from 5V to 10V
Available in 16-pin QSOP package
Single (EL5192C) and Dual(EL5292C) available
High speed, 1GHz productavailable (EL5191C)
Low power, 4mA, 300MHzproduct available (EL5193C,EL5293C, and EL5393C


Application

Video Amplifiers
Cable Drivers
RGB Amplifiers
Test Equipment
Instrumentation
Current to Voltage Converters

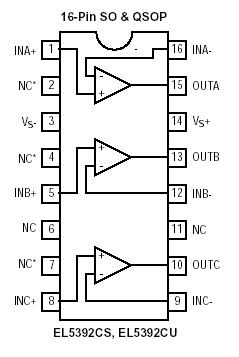

Pinout




Specifications

Supply Voltage between VS+ and VS-                                    11V
Maximum Continuous Output Current                                  50mA
Operating Junction Temperature                                        125°C
Power Dissipation                                                        See Curves
Pin Voltages VS-                                              - 0.5V to VS+ +0.5V
Storage Temperature                                        -65°C to +150°C
Operating Temperature                                       -40°C to +85°C


Description

The EL5392C is a triple current feedback amplifier with a very highbandwidth of 600MHz. This makes this amplifier ideal for today'shigh speed video and monitor applications.
With a supply current of just 6mA per amplifier and the ability to runfrom a single supply voltage from 5V to 10V, the EL5392C is alsoideal for hand held, portable or battery powered equipment.
For applications where board space is critical, the EL5392C is offeredin the 16-pin QSOP package, as well as an industry standard 16-pinSO. The EL5392C operates over the industrial temperature range of -40°C to +85°C.
