EL5326

Features: •10- to 12-channel reference outputs•Accuracy of ±1%•Supply voltage of 5V to 16.5V•Digital supply 3.3V to 5V•Low supply current of 10mA•Rail-to-rail capability•Pb-Free available (RoHS compliant)Application•TFT-LCD drive circuits•Refer...

product image

EL5326 Picture
See larger image
SeekIC No. : 004335469 Detail

EL5326: Features: •10- to 12-channel reference outputs•Accuracy of ±1%•Supply voltage of 5V to 16.5V•Digital supply 3.3V to 5V•Low supply current of 10mA•Rail-to-rail cap...

EL5326 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5326
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•10- to 12-channel reference outputs
•Accuracy of ±1%
•Supply voltage of 5V to 16.5V
•Digital supply 3.3V to 5V
•Low supply current of 10mA
•Rail-to-rail capability
•Pb-Free available (RoHS compliant)




Application

•TFT-LCD drive circuits
•Reference voltage generators

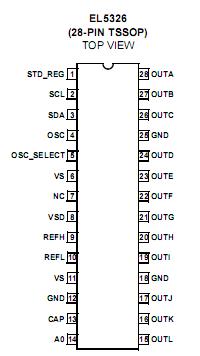

Pinout

Connection Diagram






Specifications

Supply Voltage between VSand GND. . . . . . . . . . . . . . . . . . .+18V
Supply Voltage between VSDand GND . . . . . . . VSand +7V (max)
Maximum Continuous Output Current. . . . . . . . . . . . . . . . . . 30mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . -40°C to +85°C




Description

The EL5226 and EL5326 provide a versatile method of providing the reference voltages that are used in setting the transfer characteristics of LCD display panels. The V/T (Voltage/Transmission) curve of the LCD panel requires that a correction is applied to make it linear; however, if the panel is to be used in more than one application, the final curve may differ for different applications. By using the EL5226 and EL5326, the V/T curve can be changed to optimize its characteristics according to the required application of the display product. Each of the eight reference voltage outputs can be set with a 10-bit resolution. These outputs can be driven to within 50mV of the power rails of the EL5226 and EL5326. As all of the output buffe rs are identical, it is also possible to use the EL5226 and EL5326 for applications other than LCDs where multiple voltage references are required that can be set to 10 bit accuracy.
