EL5325A

Features:

• 12-channel reference outputs
• Accuracy of ±1%
• Supply voltage of 5V to 16.5V
• Digital supply 3.3V to 5V
• Low supply current of 10mA
• Rail-to-rail capability
• Internal thermal protection
• External shutdown
• Pb-free available





Application

• TFT-LCD drive circuits
• Reference voltage generators

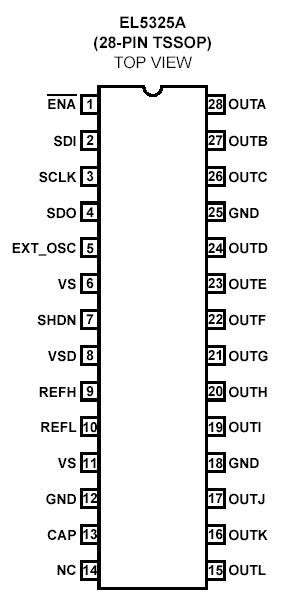

Pinout






Specifications

Supply Voltage between VS & GND . . . . ......... .4.5V (min) to 18V (max)
Supply Voltage between VSD & GND . .......3V (min) to VS and 7V (max)
Maximum Continuous Output Current . . . . . ..... . . . . . . . . . . . . . 30mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . ...... . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . . ... . . . . . . . . . . +125°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . .-40°C to +85°C

Description

The EL5325A with external shutdown is designed to produce the reference voltages required in TFT-LCD applications. Each output is programmed to the required voltage with 10 bits of resolution. Reference pins determine the high and low voltages of the output range, which are capable of swinging to either supply rail. Programming of each output is performed using the 3-wire, SPI compatible interface. A number of EL5325A can be stacked for applications requiring more than 12 outputs. The reference inputs can be tied to the rails, enabling each part to output the full voltage range, or alternatively, they can be connected to external resistors to split the output range and enable finer resolutions of the outputs. The EL5325A has 12 outputs and is available in a 28 Ld TSSOP package. They are specified for operation over the full -40C to +85C temperature range.
