EL5285

Analog Supply Voltage (V_S+ to V_S-) . . . . . . . . . . . . . . . . . +12.6V
Digital Supply Voltage (VSD to GND). . . . . . . . . . . . . . . . . . . .+7V
Differential Input Voltage . . . . . . . .[(V_S-) -0.2V] to [(V_S+) +0.2V]
Common-mode Input Voltage . . . . [(V_S-) -0.2V] to [(V_S+) +0.2V]
Latch Input Voltage . . . . . . . . . . . . . . . . .  -0.2V to [(V_SD) +0.2V]
Storage Temperature Range . . . . . . . . . . . .   -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . 125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

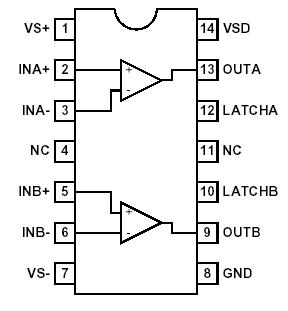

The EL5285 comparator is designed for operation in single supply and dual supply applications with 5V to 12V between VS+ and VS-. For single supplies, the inputs can operate from 0.1V below ground for use in ground sensing applications.

The output side of the comparators can be supplied from a single supply of 2.7V to 5V. The rail-to-rail output swing enables direct connection of the comparator to both CMOS and TTL logic circuits.

The latch input of the EL5285 can be used to hold the comparator output value by applying a low logic level to the pin. The EL5285 features two separate comparators The EL5285 is available in the 14-pin SO package and is specified for operation over the full -40°C to +85°C temperature range. Also available are a single (EL5185), window comparator (EL5287), and quad versions (EL5485 and EL5486).
