EL5221CW-T7

Series: -
Type: -
Number of Circuits: 2
Max Output Power x Channels @ Load: -
Voltage - Supply: -
Features: -
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Voltage - Input Offset: 2000µV
Output Type: Rail-to-Rail
Current - Input Bias: 2nA
Package / Case: SOT-23-6
Supplier Device Package: SOT-23-6
Gain Bandwidth Product: -
Packaging: Tape & Reel (TR)
Slew Rate: 10 V/µs
-3db Bandwidth: 12MHz
Current - Supply: 500µA
Current - Output / Channel: 120mA
Amplifier Type: Buffer
Manufacturer: Intersil
Voltage - Supply, Single/Dual (±): 4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V


Features:

• 12MHz -3dB bandwidth
• Unity gain buffer
• Supply voltage = 4.5V to 16.5V
• Low supply current (per buffer) = 500µA
• High slew rate = 10V/µs
• Rail-to-rail operation
• Pb-Free plus anneal available (RoHS compliant)


Application

• TFT-LCD drive circuits
• Electronics notebooks
• Electronics games
• Personal communication devices
• Personal Digital Assistants (PDA)
• Portable instrumentation
• Wireless LANs
• Office automation
• Active filters
• ADC/DAC buffer

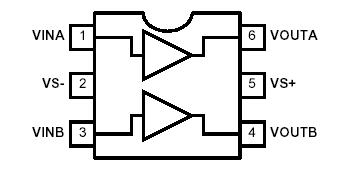

Pinout




Specifications

Supply Voltage between VS+ and VS-. . . . . . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . VS- - 0.5V, VS+ +0.5V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . 30mA
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . .. . . . .+125°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Operating Temperature . . . . . . . . . . . . . . . . .  . . -40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . .  . See Curves
ESD Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2kV
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

Description

The EL5221 is a dual, low power, high voltage rail-to-rail input-output buffer. Operating on supplies ranging from 5V to 15V, while consuming only 500µA per channel, the EL5221 has a bandwidth of 12MHz -(-3dB). The EL5221 also provides rail-to-rail input and output ability, giving the maximum dynamic range at any supply voltage.

The EL5221 also features fast slewing and settling times, as well as a high output drive capability of 30mA (sink and source). These features make the EL5221 ideal for use as voltage reference buffers in Thin Film Transistor Liquid Crystal Displays (TFT-LCD). Other applications include battery power, portable devices, and anywhere low power consumption is important.

The EL5221 is available in space-saving 6-pin SOT-23 and 8-pin MSOP packages and operates over a temperature range of -40°C to +85°C.

Parameters:

Technical/Catalog Information	EL5221CW-T7
Vendor	Intersil
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	Buffer
Number of Circuits	2 - Dual
Package / Case	SOT-23-6
Slew Rate	10 V/s
Gain Bandwidth Product	-
Current - Supply	500A
Current - Output / Channel	120mA
Voltage - Supply, Single/Dual (±)	4.5 V ~ 16.5 V, ±2.25 V ~ 8.25 V
Output Type	Rail-to-Rail
-3db Bandwidth	12MHz
Current - Input Bias	2nA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	2000V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EL5221CW T7 EL5221CWT7
