EL4344C

Features: * 4:1 Mux* Triple channels* ±5V operation* Gain of 1 (EL4344C)* Gain of 2 (EL4348C)* 600MHz bandwidth* Supply current of 11mA/channelApplication* HDTV/DTV Analog Inputs* Video Projectors* Computer Monitors* Set Top Boxes* Security Video* Broadcast Video EquipmentPinoutSpecificationsValue...

product image

EL4344C Picture
See larger image
SeekIC No. : 004335256 Detail

EL4344C: Features: * 4:1 Mux* Triple channels* ±5V operation* Gain of 1 (EL4344C)* Gain of 2 (EL4348C)* 600MHz bandwidth* Supply current of 11mA/channelApplication* HDTV/DTV Analog Inputs* Video Projectors* ...

EL4344C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL4344C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 4:1 Mux
* Triple channels
* ±5V operation
* Gain of 1 (EL4344C)
* Gain of 2 (EL4348C)
* 600MHz bandwidth
* Supply current of 11mA/channel


Application

* HDTV/DTV Analog Inputs
* Video Projectors
* Computer Monitors
* Set Top Boxes
* Security Video
* Broadcast Video Equipment


Pinout

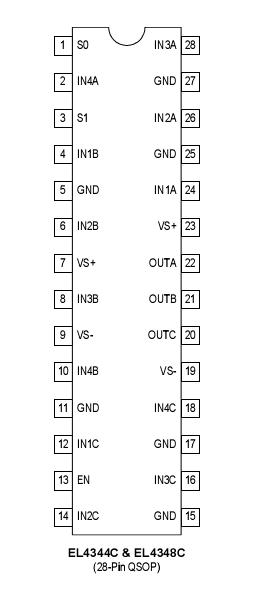

Connection Diagram


Specifications

Values beyond absolute maximum ratings can cause the device to be pre-
maturely damaged. Absolute maximum ratings are stress ratings only
and functional device operation is not implied.
Supply Voltage (VS+ to VS-)                                                                   11V
Input Voltage                                                             VS- - 0.3V, VS+ +0.3V
Storage Temperature Range                                          -65°C to +150°C
Ambient Operating Temperature                                      -40°C to +85°C
Operating Junction Temperature                                                      125°C
Power Dissipation                                                                      See Curves


Description

The EL4344C and EL4348C are 600MHz bandwidth multiplexing amplifiers designed primarily for input video switching. The EL4344C and EL4348C contain 4:1 multiplexing amplifiers.  The EN pin can be used to tri-state the MUX output, enabling parts to be paralleded for a greater number of inputs. All logic inputs are refer- enced to the GND pin.

The EL4344C has a gain of 1 and the EL4348C has a gain of 2.

The EL4344C and the EL4348C are available in a 28-pin QSOP pack- age and are specified for operation over the full ---40°C to +85°C temperature range.
