Features:

• 3ns A-B switching
• 300MHz bandwidth
• Power-down mode
• TTL/CMOS compatible controls
• Fixed gain of 1
• 400V/µs slew rate
• Pb-free available


Application

• RGB multiplexing
• Picture-in-picture
• Cable driving
• HDTV processing
• Switched gain amplifiers
• ADC input multiplexer


Pinout

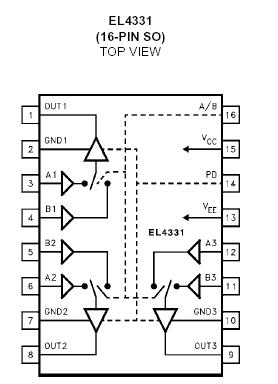

Connection Diagram


Specifications

VCC to VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
VCC to Any GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V
VEE to Any GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12V
Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . .45mA
Any Input (except PD) . . . . . . . . . . . . . . .VEE-0.3V to VCC+0.3V
PD Input . . . . . . . . . . . . . . . . . . . . . . . . . . VCC-7V to VCC+0.3V
Input Current, Any Input. . . . . . . . . . . . . . . . . . . . . . . . . . .5mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . See curves
Ambient Operating Temperature . . . . . . . . . . . -40°C to +85°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Storage Temperature . . . . . . . . . . . . . . . . . . .-65°C to +150°C


Description

The EL4331 is a triple, very high speed, 2:1 Multiplexing Amplifier. It is intended primarily for component video multiplexing, and is especially suited for pixel switching. The amplifiers have their gain set to 1, internally. All three amplifiers are switched simultaneously from their A to B inputs by the TTL/CMOS compatible, common A/B control pin.

The EL4331 has a power-down mode, in which the total supply current drops to less than 1mA. In this mode, each output will appear as a high impedance.

The EL4331 runs from standard ±5V supplies, and is available in the narrow 16-pin small outline package. The package is specified for operation over the full -40°C to +85°C temperature range.
