EL4093

Features: * High accuracy DC restoration for video* Low supply current of 9.5mA typ.* 300MHz bandwidth* 1500V/s slew rate* 0.04% differential gain and 0.02° differential phase into 150? for NTSC* 1.5mV max. restored DC offset* Sample and hold amplifier with fast enable and low leakage* TTL-compati...

product image

EL4093 Picture
See larger image
SeekIC No. : 004335244 Detail

EL4093: Features: * High accuracy DC restoration for video* Low supply current of 9.5mA typ.* 300MHz bandwidth* 1500V/s slew rate* 0.04% differential gain and 0.02° differential phase into 150? for NTSC* 1....

EL4093 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL4093
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High accuracy DC restoration for video
* Low supply current of 9.5mA typ.
* 300MHz bandwidth
* 1500V/s slew rate
* 0.04% differential gain and 0.02° differential phase into 150? for NTSC
* 1.5mV max. restored DC offset
* Sample and hold amplifier with fast enable and low leakage
* TTL-compatible HOLD logic input


Application

* Input amplifier in video equipment
* Restoration amplifier in video mixers


Pinout

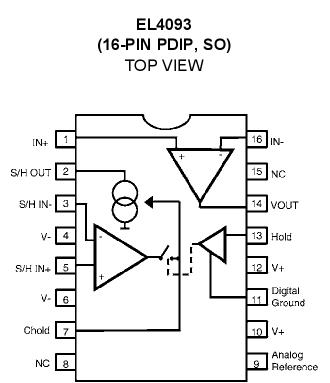

Connection Diagram


Specifications

VS V+ to V- Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .12.6V
VHOLD Voltage at HOLD input
(DGND-0.7) to (DGND+5.5V)
VIN Voltage at any other input . . . . . . . . . . . . . . . . . . . . . V+ to V-
VINDifference between Sample and Hold inputs . . . . . . . . . ..±8V
IOUT2 S/H amplifier output current . . . . . . . . . . . . . . . . . . ±10mA
IOUT1 Video amplifier output current. . . . . . . . . . . . . . . . . ±30mA
IIN Maximum current into other pins. . . . . . . . . . . . . . . . . . .±6mA
PD Maximum Power Dissipation. . . . . . . . . . . . . . . . . . See Curves
TA Operating Ambient Temperature Range. . . . .-40°C to +85°C
TJ Operating Junction Temperature. . . . . . . . . . . . . . . . . ..150°C
TST Storage Temperature Range. . . . . . . . . . .-65°C to +150°C




Description

The EL4093 is a complete DC-restored video amplifier subsystem, featuring low power consumption and high slew rate. It contains a current feedback amplifier and a sample and hold amplifier designed to stabilize video performance. When the HOLD logic input is low, the sample and hold may be used as a general purpose op amp to null the DC offset of the video amplifier. When the HOLD input goes high the sample and hold stores the correction voltage on the hold capacitor to maintain DC correction during the subsequent video scan line.

The sample and hold amplifier contains a current output stage that greatly simplifies its connection to the video amplifier. Its high output impedance also helps to preserve video linearity at low supply voltages. For ease of interfacing, the HOLD input is TTL-compatible. This device has an operational temperature of -40°C to +85°C and is packaged n plastic 16-pin DIP and 16-pin SOIC.
