EL2099

Voltage between VS+ and VS- . . . . . . . . . . . . . . . . . . . . . . . . . .+33V
Voltage at VS+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +16.5V
Voltage at VS- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . -16.5V
Voltage between VIN+ and VIN- . . . . . . . . . . . . . . . . . . . . . . . . .±6V
Current into VIN+ or VIN- . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10mA
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . ... . See Curves
Operating Ambient Temperature Range . . . . . . . . . . . 0°C to +75°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage Temperature Range . . . . . . . . . . . . . . . . . -65°C to +150°C
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

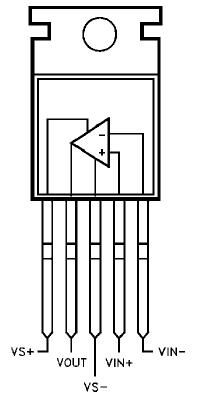

The EL2099 is a high speed, monolithic operational amplifier* featuring excellent video performance and high output current capability. Built using Elantec's Complementary Bipolar process, the EL2099 uses current mode feedback to achieve wide bandwidth, and is stable in unity gain configuration.

Operation from power supplies ranging from ±5V to ±15V makes the EL2099 extremely versatile. With supplies at ±15V, the EL2099 can deliver ±11V into 25 at slew rates of 1000V/s. At ±5V supplies, output voltage range is ±3V into 25. Its speed and output current capability make this device ideal for video line driver and automatic test equipment applications.

Differential Gain and Phase of the EL2099 are 0.03% and 0.05° respectively, and -3dB bandwidth is 50MHz. These features make the EL2099 especially well suited for video distribution applications.
