EL2072

Features: * 730MHz -3dB bandwidth (0.5VPP )* 5ns settling to 0.2%* VS = ±5V @ 15mA* Low distortion: HD2, HD3 of -65dBc at 20MHz* Overload/short-circuit protected* Closed-loop, unity gain* Low cost* Direct replacement for CLC110Application* Video buffer* Video distribution* HDTV buffer* High-speed ...

product image

EL2072 Picture
See larger image
SeekIC No. : 004335137 Detail

EL2072: Features: * 730MHz -3dB bandwidth (0.5VPP )* 5ns settling to 0.2%* VS = ±5V @ 15mA* Low distortion: HD2, HD3 of -65dBc at 20MHz* Overload/short-circuit protected* Closed-loop, unity gain* Low cost* ...

EL2072 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL2072
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 730MHz -3dB bandwidth (0.5VPP )
* 5ns settling to 0.2%
* VS = ±5V @ 15mA
* Low distortion: HD2, HD3 of -65dBc at 20MHz
* Overload/short-circuit protected
* Closed-loop, unity gain
* Low cost
* Direct replacement for CLC110


Application

* Video buffer
* Video distribution
* HDTV buffer
* High-speed A/D buffer
* Photodiode, CCD preamps
* IF processors
* High-speed communications


Pinout

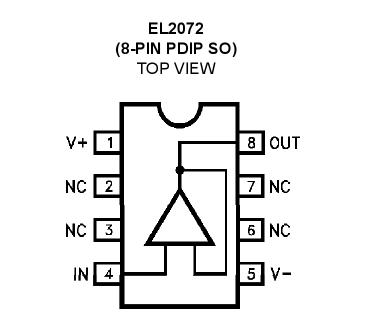

Connection Diagram


Specifications

Supply Voltage (VS ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±7V
Output Current
Output is short-circuit protected to ground, however, maximum reliability is
obtained if IOUT does not exceed 70mA.
nput Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±VS
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .. . . -60°C to +150°C
Thermal Resistance. . . . . . . . . . . . . . . . . . . . . . . .  . . .JA  = 95°C/WPDIP
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . JA  = 175°C/W SO



Description

The EL2072 is a wide bandwidth, fast settling monolithic buffer built using an advanced complementary bipolar process. This buffer is closed loop to achieve lower output mpedance and higher gain accuracy. Designed for closed-oop unity gain, the EL2072 has a 730MHz -3dB bandwidth and 5ns settling to 0.2% while consuming only 15mA of supply current.

The EL2072 is an obvious high-performance solution for video distribution and line-driving applications. With low 15mA supply current and a 70mA output drive, performance in these areas is assured.

The EL2072's settling to 0.2% in 5ns, low distortion, and ability to drive capacitive loads make it an ideal flash A/D driver. The wide 730MHz bandwidth and extremely linear phase allow unmatched signal fidelity.

The EL2072 can be used inside an amplifier loop or PLL as its wide bandwidth and fast rise time have minimal effect on loop dynamics.

Elantec products and facilities comply with MIL-I-45028A, and other applicable quality specifications. For information on Elantec's processing, see Elantec document QRA-1: Elantec's Processing, Monolithic Integrated Circuits.
