EL2020

Features: * Slew rate 500V/s* ±33mA output current* Drives ±2.4V into 75* Differential phase < 0.1°* Differential gain < 0.1%* V supply ±5V to ±18V* Output short circuit protected* Uses current mode feedback* 1% settling time of 50ns for 10V step* Low cost* 9mA supply current* 8-pin mini-dip...

product image

EL2020 Picture
See larger image
SeekIC No. : 004335123 Detail

EL2020: Features: * Slew rate 500V/s* ±33mA output current* Drives ±2.4V into 75* Differential phase < 0.1°* Differential gain < 0.1%* V supply ±5V to ±18V* Output short circuit protected* Uses curren...

EL2020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL2020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Slew rate 500V/s
* ±33mA output current
* Drives ±2.4V into 75
* Differential phase < 0.1°
* Differential gain < 0.1%
* V supply ±5V to ±18V
* Output short circuit protected
* Uses current mode feedback
* 1% settling time of 50ns for 10V step
* Low cost
* 9mA supply current
* 8-pin mini-dip


Application

* Video gain block
* Residue amplifier
* Radar systems
* Current to voltage converter
* Coax cable driver with gain of 2

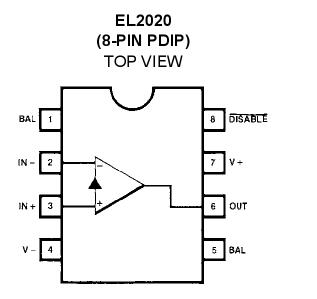

Pinout

Connection Diagram Connection Diagram


Specifications

VS    Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . ±18V or 36V
VIN   Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V or VS
VIN  Differential Input Voltage. . . . . . . . . . . . . . . . . . . . . . ..±10V
IIN   Input Current (Pins 2 or 3). . . . . . . . . . . . . . . . . . . . .±10mA
IINS Input Current (Pins 1, 5, or 8) . . . . . . . . . . . . . . . . . . .±5mA
PD   Maximum Power Dissipation. . . . . . . . . . (See Curves)1.25W
IOP  Peak Output Current. . . . . . . . . . . . . Short Circuit Protected
       Output Short Circuit Duration. . . . . . . . . . . . . . . .Continuous
TA   Operating Temperature Range. . . . . . . . . . -40°C to +85°C
TJ    Operating Junction Temperature
       Plastic Package, SOL. . . . . . . . . . . . . . . . . . . . . . . . . .150°C
TST Storage Temperature . . . . . . . . . . . . . . . . -65°C to +150°C




Description

The EL2020 is a fast settling, wide bandwidth amplifier optimized for gains between -10 and +10. Built using the Elantec monolithic Complementary Bipolar process, this  amplifier uses current mode feedback to achieve more bandwidth at a given gain then a conventional voltage feedback operational amplifier.

The EL2020 will drive two double terminated 75 coax cables to video levels with low distortion. Since it is a closed loop device, the EL2020 provides better gain accuracy and lower distortion than an open loop buffer. The device includes output short circuit protection, and input offset adjust capability.

The bandwidth and slew rate of the EL2020 are relatively independent of the closed loop gain taken. The 50MHz bandwidth at unity gain only reduces to 30MHz at a gain of 10. The EL2020 may be used in most applications where a conventional op amp is used, with a big improvement in speed power product.
