EL1881

Features:

• NTSC, PAL, SECAM, non-standard video sync separation
• Fixed 70mV slicing of video input levels from 0.5VP-P to 2VP-P
• Low supply current - 1.5mA typ.
• Single +5V supply
• Composite, vertical sync output
• Odd/even field output
• Burst/back porch output
• Available in 8-pin PDIP and SO packages
• Pb-free available




Application

• Video amplifiers
• PCMCIA applications
• A/D drivers
• Line drivers
• Portable computers
• High-speed communications
• RGB applications
• Broadcast equipment
• Active filtering

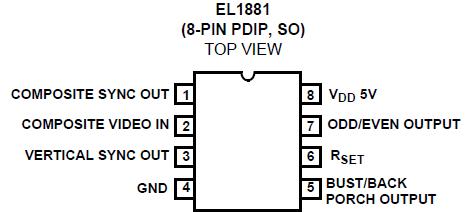

Pinout






Specifications

V_CC Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . .7V
Storage Temperature. . . . . . . . . . . . . . . . . . . . . .. .-65°C to +150°C
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . .... . -0.5V to V_CC +0.5V
Operating Ambient Temperature Range . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature. . . . . . . . . . . . . . .. . . . . . . . . 150°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . .400mW




Description

The EL1881 video sync separator is manufactured using Elantecs high performance analog CMOS process. This device extracts sync timing information from both standard and non-standard video input. It provides composite sync, vertical sync, burst/back porch timing, and odd/even field detection. Fixed 70mV sync tip slicing provides sync edge detection when the video input level is between 0.5VP-P and -2VP-P (sync tip amplitude 143mV to 572mV). A single external resistor sets all internal timing to adjust for various video standards. The composite sync output follows video in sync pulses and a vertical sync pulse is output on the rising edge of the first vertical serration following the vertical preequalizing string. For non-standard vertical inputs, a default vertical pulse is output when the vertical signal stays low for longer than the vertical sync default delay time. The odd/even output indicates field polarity detected during the vertical blanking interval. The EL1881 is plug-in compatible with the industry-standard LM1881 and can be substituted for that part in 5V applications with lower required supply current. The EL1881 is available in the 8-pin PDIP and SO packages and is specified for operation over the full -40C to +85C temperature range.
