EL1848

Features: • 2.6V to 13.2V input voltage• 14V maximum output voltage• Drives up to 9 LEDs, 3 in a series• 1MHz switching frequency• Up to 91% efficiency• 1A maximum shut-down current• Dimming control• 8-pin TSOT and MSOP packages• Pb-free Availa...

product image

EL1848 Picture
See larger image
SeekIC No. : 004335102 Detail

EL1848: Features: • 2.6V to 13.2V input voltage• 14V maximum output voltage• Drives up to 9 LEDs, 3 in a series• 1MHz switching frequency• Up to 91% efficiency• 1A maximu...

EL1848 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL1848
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.6V to 13.2V input voltage
• 14V maximum output voltage
• Drives up to 9 LEDs, 3 in a series
• 1MHz switching frequency
• Up to 91% efficiency
• 1A maximum shut-down current
• Dimming control
• 8-pin TSOT and MSOP packages
• Pb-free Available


Application

• PDAs
• Cellular phones
• Digital cameras
• White LED backlighting


Pinout

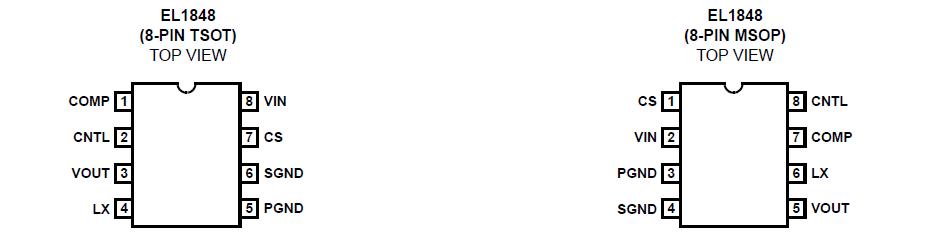

Connection Diagram


Specifications

COMP, CNTL, CS to SGND. . . . . . . . . . . . . . . . . . . . . .... ..-0.3V to +6V
VIN to SGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+14V
VOUT to SGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .+14V
LX to PGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+16V
SGND to PGND. . . . . . . . . . . . . . . . . . . . . . . . . . . ... . -0.3V to +0.3V
Storage Temperature . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . .. . .-40°C to +85°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . 125°C


Description

The EL1848 is a constant current boost regulator specially designed for driving white LEDs. It can drive 3 LEDs in series or up to 9 LEDs in parallel/series configuration and achieves efficiency up to 91%. The brightness of the LEDs is adjusted through a voltage evel on the CNTL pin. When the level falls below 0.1V, the chip goes into shut-down mode and consumes less than 1A of supply current for VIN less than 5.5V.

The EL1848 is available in 8-pin TSOT and MSOP packages. The TSOT is just 1mm high, compared to 1.45mm for the standard SOT-23 package.
