EL1506

Features: • Drives 360mA at 16VP-P on ±12V supplies• 40VP-P differential output drive into 100• -75dBc typical driver output distortion driving 50 at 1MHz• Low quiescent current of 3.5mA per amplifier• Power-down disable modeApplication• ADSL G.DMT and G.lite CO...

product image

EL1506 Picture
See larger image
SeekIC No. : 004335078 Detail

EL1506: Features: • Drives 360mA at 16VP-P on ±12V supplies• 40VP-P differential output drive into 100• -75dBc typical driver output distortion driving 50 at 1MHz• Low quiescent curr...

EL1506 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL1506
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Drives 360mA at 16VP-P on ±12V supplies
• 40VP-P differential output drive into 100
• -75dBc typical driver output distortion driving 50 at 1MHz
• Low quiescent current of 3.5mA per amplifier
• Power-down disable mode


Application

• ADSL G.DMT and G.lite CO line driving
• G.SHDSL, HDSL2 line driver
• ADSL CPE line driving
• Video distribution amplifier
• Video twisted-pair line driver
• Functional and pin-compatible with AD8016


Pinout

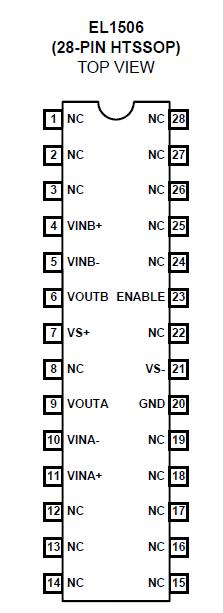

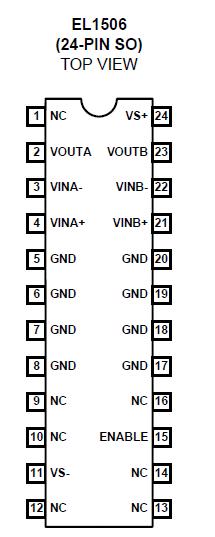

Connection Diagram Connection Diagram


Description

The EL1506 is a very low power dual operational amplifier designed for central office and customer premise line driving for DMT ADSL solutions. This device features a high drive capability of 400mA while consuming only 3.5mA of supply current per amplifier from ±12V supplies. This driver achieves a typical distortion of less than -75dBc, at 1MHz into a 50 load. The EL1506 is available in the 28-pin HTSSOP and the 24-pin thermally-enhanced SO packages. Both parts are specified for operation over the full -40°C to +85°C temperature range.

The EL1506 has an ENABLE pin which can be used to enable and disable the outputs.

In most applications, the EL1506 is an upgrade and pincompatible drop-in replacement for the AD8016.
