EL1502C

The EL1502C is a complete transceiver solution for high speed data transmission over twisted pair wires. It contains two wideband, highvoltage drivers and two low-noise receive amplifiers. The EL1502C is ideally suited for both ADSL and HDSL2 applications, in which it can supply a 50VP-P signal into a 50W differential load while exhibiting very low distortion. The receive amplifiers also have very low distortion and low-noise for superior reception of small signals.

The line drivers of the EL1502C are current-feedback type amplifiers, which achieve a high slew rate while consuming moderate power. They retain their frequency response over a wide range of externally set gains. The receive amplifiers are of the voltage-feedback type and can be used to implement a hybrid coupler or filter functions using external passive components.
The EL1502C operates on ±5V to ±15V supplies. It retains its bandwidth and linearity over the complete supply range.

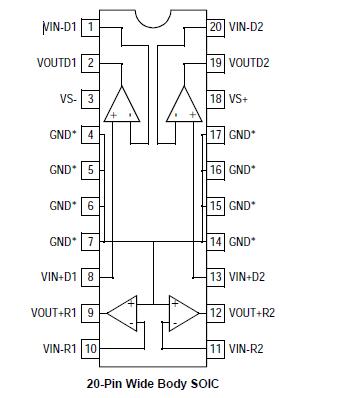

The EL1502C device is supplied in a standard form factor, 20-pin SOIC package. The eight center package pins of the package are used as ground connections and heat spreaders, allowing for operation over the full -- -40°C to +85°C temperature range.
