Product Details

Description



Features:

• 3.3V power supply
• Clock frequency: 133MHz (max.)
• Single pulsed /RAS
• ×32 organization
• 4 banks can operate simultaneously and independently
• Burst read/write operation and burst read/single write operation capability
• 2 variations of burst sequence
-Sequential (BL = 1, 2, 4, 8, full page)
-Interleave (BL = 1, 2, 4, 8)
• Programmable /CAS latency (CL): 2, 3
• Byte control by DQM
• Refresh cycles: 4096 refresh cycles/64ms
• 2 variations of refresh
-Auto refresh
-Self refresh
• TSOP (II) package with lead free solder (Sn-Bi)
• Wide temperature range
-Ambient temperature range: –40 to +85°C


Pinout

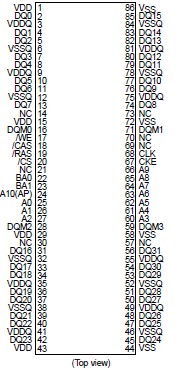

Connection Diagram


Specifications

Parameter

Symbol

Rating

Unit

Voltage on any pin relative to VSS
VT
0.5 to VDD + 0.5 (4.6 (max.))
V
Supply voltage relative to VSS
VDD
0.5 to +4.6
V
Short circuit output current
IOS
50
mA
Power dissipation
PD
1.0
W
Operating temperature
TA
-40 to +85
°C

Storage temperature
Tstg
55 to +125
°C

Caution
Exposing the device to stress above those listed in Absolute Maximum Ratings could cause permanent damage. The device is not meant to be operated under conditions outside the limits described in the operational section of this specification. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.




Description

The EDS6432AFTA is a 64M bits SDRAM organized as 524,288 words × 32 bits × 4 banks. All inputs andoutputs are synchronized with the positive edge of the clock.

It is packaged in 86-pin plastic TSOP (II).
