EDI88130CS

Features: Access Times of 15*, 17, 20, 25, 35, 45, 55nsBattery Back-up Operation2V Data Retention (EDI88130LPS)CS1, CS2 & OE Functions for Bus ControlInputs and Outputs Directly TTL CompatibleOrganized as 128Kx8Commercial, Industrial and Military Temperature RangesThru-hole and Surface Mount P...

product image

EDI88130CS Picture
See larger image
SeekIC No. : 004333844 Detail

EDI88130CS: Features: Access Times of 15*, 17, 20, 25, 35, 45, 55nsBattery Back-up Operation2V Data Retention (EDI88130LPS)CS1, CS2 & OE Functions for Bus ControlInputs and Outputs Directly TTL CompatibleOr...

EDI88130CS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDI88130CS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Access Times of 15*, 17, 20, 25, 35, 45, 55ns
Battery Back-up Operation
2V Data Retention (EDI88130LPS)
CS1, CS2 & OE Functions for Bus Control
Inputs and Outputs Directly TTL Compatible
Organized as 128Kx8
Commercial, Industrial and Military Temperature Ranges
Thru-hole and Surface Mount Packages JEDEC Pinout
32 pin Sidebrazed Ceramic DIP, 400 mil (Package 102)
32 pin Sidebrazed Ceramic DIP, 600 mil (Package 9)
32 lead Ceramic SOJ (Package 140)
32 pad Ceramic Quad LCC (Package 12)
32 pad Ceramic LCC (Package 141)
32 lead Ceramic Flatpack (Package 142)
Single +5V ( 10%) Supply Operation

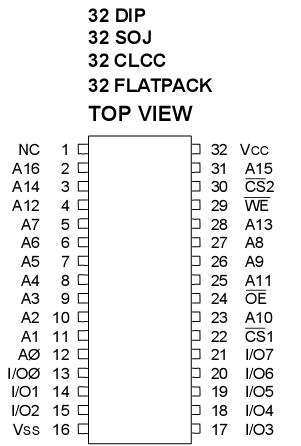

Pinout

Connection Diagram


Specifications

Parameter   Unit
Voltage on any pin relative to Vss -0.2 to 7.0 V
Operating Temperature TA (Ambient)
Industrial -40 to +85 °C
Military -55 to +125 °C
Storage Temperature, Plastic -65 to +150 °C
Power Dissipation 1.7 W
Output Current 40 mA
Junction Temperature, TJ 175 °C



Description

The EDI88130CS is a high speed, high performance, 128Kx8 bits monolithic Static RAM. An additional chip enable line provides system memory security during power down in non-battery backed up systems and memory banking in high speed battery backed systems where large mul-tiple pages of memory are required.

The EDI88130CS has eight bi-directional input-output lines to provide simultaneous access to all bits in a word.A low power version,  EDI88130LPS, offers a 2V data retention function for battery back-up applications.Military product is available compliant to MIL-PRF-38535.
