EDI88128C

Features:

Access Times of 70, 85, 100ns
Available with Single Chip Selects (EDI88128) or Dual Chip Selects (EDI88130)
2V Data Retention (LP Versions)
CS# and OE# Functions for Bus Control
TTL Compatible Inputs and Outputs
Fully Static, No Clocks
Organized as 128Kx8
Industrial, Military and Commercial Temperature Ranges
Thru-hole and Surface Mount Packages JEDEC Pinout
  • 32 pin Ceramic DIP, 0.6 mils wide (Package 9)
  • 32 lead Ceramic SOJ (Package 140)
Single +5V (±10%) Supply Operation

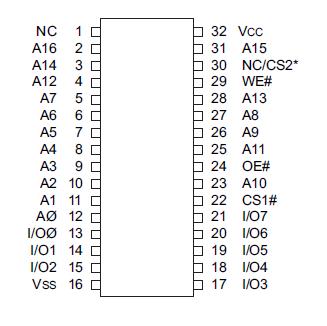

Pinout




Specifications

Parameter		Unit
Voltage on any pin relative to VSS	-0.5 to 7.0	V
Operating Temperature TA (Ambient) Commercial Industrial Military	0 to +70	°C
	-40 to +85	°C
	-55 to +125	°C
Storage Temperature, Plastic	-65 to +150	°C
Power Dissipation	1	W
Output Current	20	mA
Junction Temperature, TJ	175	°C

Description

The EDI88128C is a high speed, high performance, Monolithic CMOS Static RAM organized as 128Kx8.

The device EDI88128C is also available as EDI88130C with an additional chip select line (CS2) which will automatically power down the device when proper logic levels are applied.

The second chip select line (CS2) can be used to provide system memory security during power down in non-battery backed up systems and simplifi y decoding schemes in memory banking where large multiple pages of memory are required.

The EDI88128C and the EDI88130C have eight bidirectional input-output lines to provide simultaneous access to all bits in a word. An automatic power down feature permits the on-chip circuitry to enter a very low standby mode and be brought back into operation at a speed equal to the address access time.

Low power versions, EDI88128LP and EDI88130LP, offer a 2V data retention function for battery back-up opperation. Military product is available compliant to Appendix A of MIL-PRF-38535.
