EDGE749

Features:

• 20 MHz Operation
• 18 V DUT I/O Range
• Programmable Output Levels
• Programmable Input Thresholds
• Per Pin Flexibility
• High Integration Levels
• Low Power Dissipation
• Edge 648 and 649 Compatible


Application

• Burn-In ATE
• Functional Board Testers
• In-Circuit Board Testers
• Combinational Board Testers
• Low Cost Chip Testers
• ASIC Verifiers
• VXI-Based Test Equipment

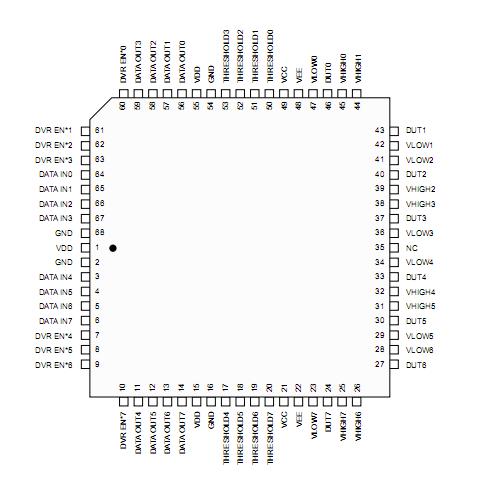

Pinout




Specifications

Parameter	Symbol	Min	Min	Max	Units
Total Analog Power Supply	VCC - VEE			19	V
Positive Analog Power Supply	VCC	-.5		19	V
Negative Analog Power Supply	VEE	-5		0.5	V
Driver High Output Voltage	VHIGH	VEE - .5		VCC + .5	V
Driver Low Output Voltage	VLOW	VEE - .5		VCC + .5	V
Driver Output Swing	VHIGH - VLOW	-18.5		18.5	V
Receiver Threshold Voltage	THRESHOLD	VEE - .5		VCC + .5	V
Digital Inputs	DATA IN DVR EN*	GND - .5		VCC + .5	V
Digital Power Supply	VDD	0		6.5
Ambient Operating Temperature	TA	-55		+125
Storage Temperature	TS	-65		+150
Junction Temperature	TJ			+150
Soldering Temperature	TSOL			260

Description

The Edge749 is an octal pin electronics driver and receiver combination fabricated in a high-performance CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, and power are all at a premium.

The Edge749 incorporates eight channels of programmable drivers and receivers into one package. Each channel has per pin driver levels, receiver threshold, and tristate control.

The 18V driver output and receiver input range allows the Edge749 to interface directly between TTL, ECL, CMOS (3V, 5V, and 8V), very high voltage, and custom level circuitry.

The Edge749 is pin and functionally compatible with the Edge648 and Edge649.
