EDE5104ABSE

Features:

Power supply:  VDD, VDDQ = 1.8V ± 0.1V
Double-data-rate architecture: two data transfers per clock cycle
Bi-directional, differential data strobe (DQS and /DQS) is transmitted/received with data, to be used in capturing data at the receiver
DQS is edge aligned with data for READs: center-aligned with data for WRITEs
Differential clock inputs (CK and /CK)
DLL aligns DQ and DQS transitions with CK transitions
Commands entered on each positive CK edge: data and data mask referenced to both edges of DQS
Four internal banks for concurrent operation
Data mask (DM) for write data
Burst lengths: 4, 8
/CAS Latency (CL): 3, 4, 5
Auto precharge operation for each burst access
Auto refresh and self refresh modes
7.8s average periodic refresh interval
SSTL_18 compatible I/O
Posted CAS by programmable additive latency for better command and data bus efficiency
Off-Chip-Driver Impedance Adjustment and On-Die-Termination for better signal quality
Programmable RDQS, /RDQS output for making * 8 organization compatible to * 4 organization
/DQS, (/RDQS) can be disabled for single-ended Data Strobe operation.
FBGA (BGA) package with lead free solder (Sn-Ag-Cu)
   -RoHS compliant

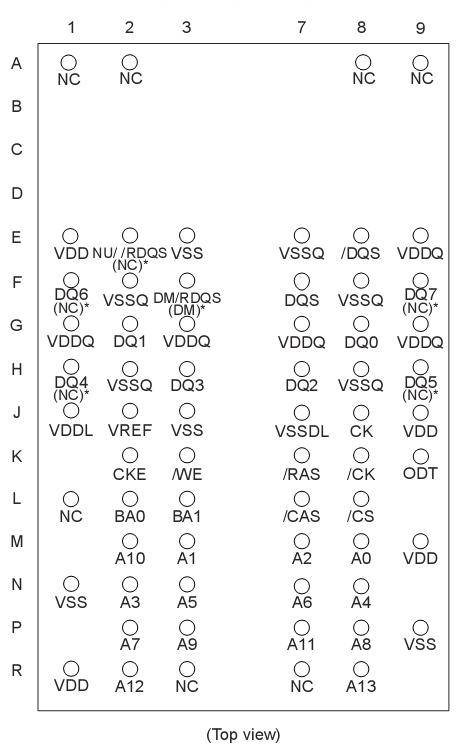

Pinout




Specifications

Parameter	Symbol	Rating	Unit	Note
Power supply voltage	VDD	-1.0 to +2.3	V	1
Power supply voltage for output	VDDQ	-0.5 to +2.3	V	1
Input voltage	VIN	-0.5 to +2.3	V	1
Output voltage	VOUT	-0.5 to +2.3	V	1
Storage temperature	Tstg	-55 to +100	°C	1.2
Power dissipation	PD	1.0	W	1
Short circuit output current	IOUT	50	mA	1

Description

The EDE5104ABSE is a 512M bits DDR2 SDRAM organized as 33,554,432 words * 4 bits * 4 banks.   The EDE5108ABSE is a 512M bits DDR2 SDRAM organized as 16,777,216 words * 8 bits * 4 banks.   They are packaged in 64-ball FBGA (BGA^(R)) package. The EDE5116ABSE is a 512M bits DDR2 SDRAM organized as 8,388,608 words * 16 bits * 4 banks.   It is packaged in 84-ball FBGA (BGA) package.
