EDD1232AAFA

Features:

Power supply:  VDDQ = 2.5V ± 0.2V
                        :  VDD = 2.5V ± 0.2V
Data rate: 333Mbps/266Mbps (max.)
Double Data Rate architecture; two data transfers per clock cycle
Bi-directional, data strobe (DQS) is transmitted /received with data, to be used in capturing data at the receiver
Data inputs, outputs, and DM are synchronized with DQS
4 internal banks for concurrent operation
DQS is edge aligned with data for READs; center aligned with data for WRITEs
Differential clock inputs (CK and /CK)
DLL aligns DQ and DQS transitions with CK transitions
Commands entered on each positive CK edge; data and data mask referenced to both edges of DQS
Data mask (DM) for write data
Auto precharge option for each burst access
SSTL_2 compatible I/O
Programmable burst length (BL):  2, 4, 8
Programmable /CAS latency (CL):  2, 2.5, 3
Programmable output driver strength: half/weak
Refresh cycles:  4096 refresh cycles/32ms
   -7.8s maximum average periodic refresh interval
2 variations of refresh
  -Auto refresh
  -Self refresh
LQFP package with lead free solder (Sn-Bi) RoHS compliant

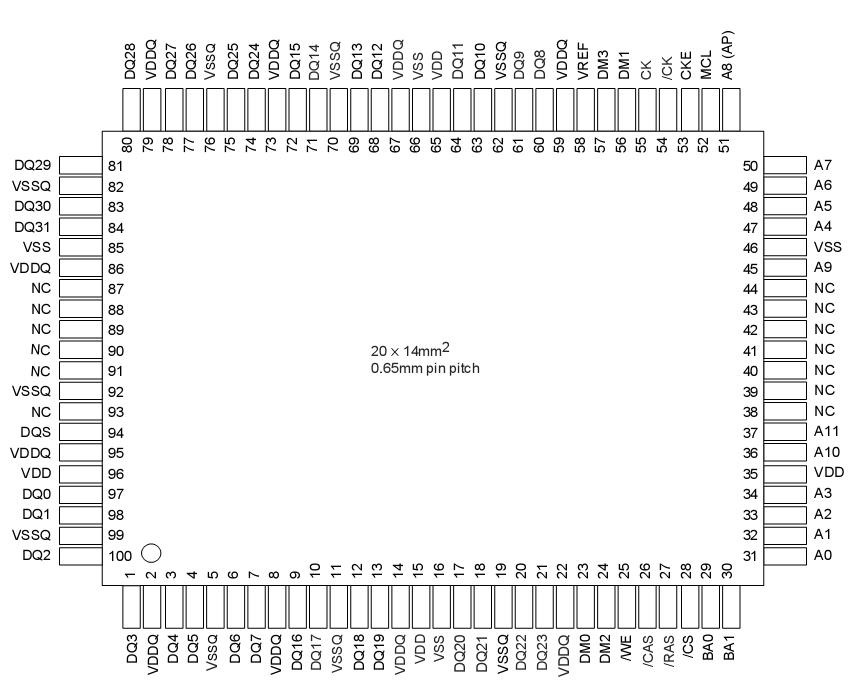

Pinout




Specifications

Parameter	Symbol	Rating	Unit	Note
Voltage on any pin relative to VSS	VT	-1.0 to +3.6	V
Supply voltage relative to VSS	VDD	-1.0 to +3.6	V
Short circuit output current	IOS	50	mA
Power dissipation	PD	1.0	W
Operating ambient temperature	TA	0 to +70	°C
Storage temperature	Tstg	-55 to +125	°C

Description

The EDD1232AAFA is a 128M bits DDR SDRAM organized as 1,048,576 words  × 32 bits  × 4 banks.  Read and write operations are performed at the cross points of the CK and the /CK. This high-speed data transfer EDD1232AAFA is realized by the 2 bits prefetch-pipelined architecture.  Data strobe (DQS) both for read and write are available for high speed and reliable data bus design. By setting extended mode register, the on-chip Delay Locked Loop (DLL) can be set enable or disable. It is packaged in 100-pin plastic LQFP package.
