Product Details

Description



Features:

* TO-251AA Case
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available


Pinout

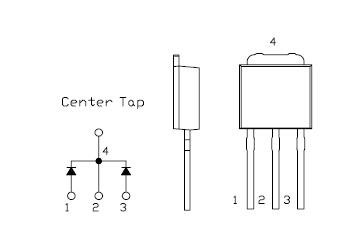

Connection Diagram


Specifications

Rating Symbol
EA40QC10
Unit
Repetitive Peak Reverse Voltage VRRM
100
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.6
Ta=35°C
50Hz Full Sine Wave
Resistive Load
A
-
4.0
Tc=129°C
RMS Forward Current IF(RMS)
4.44
A
Surge Forward Current IFSM
40
50Hz Full Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
