EA40QC04

Features: * TO-251AA Case* Dual Diodes Cathode Common* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 40 Volts thru 100 Volts Types AvailablePinoutSpecifications Rating Symbol EA40QC04 Unit Repetitive Peak Reverse Voltage VRRM 40 V Non-repetitive Peak Rev...

product image

EA40QC04 Picture
See larger image
SeekIC No. : 004330796 Detail

EA40QC04: Features: * TO-251AA Case* Dual Diodes Cathode Common* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 40 Volts thru 100 Volts Types AvailablePinoutSpecifications Rating Symbo...

EA40QC04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EA40QC04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* TO-251AA Case
* Dual Diodes Cathode Common
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available

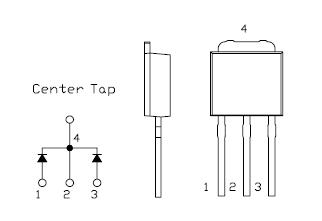

Pinout

Connection Diagram


Specifications

Rating Symbol
EA40QC04
Unit
Repetitive Peak Reverse Voltage VRRM
40
V
Non-repetitive Peak Reverse Voltage VRRM
45
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.8
Ta=30°C
50Hz Full Sine Wave
Resistive Load
A
-
4.0
Tc=129°C
RMS Forward Current IF(RMS)
4.44
A
Surge Forward Current IFSM
40
50Hz Full Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
