DS3154DK

Soldered DS3154 for Best Signal Integrity
BNC Connectors, Transformers and Termination Passives for All Four LIUs
Careful Layout for Analog Signal Paths
Equipment-Side Connector for External Data Source/Sink or External Remote Loopback
On-Board DS3 and E3 Crystal Oscillators

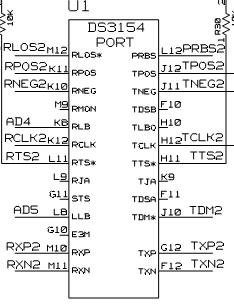

DS3154 Configured for CPU Bus Operation for Complete Control Over the Device
On-Board Dallas Microcontroller and Included Software Provide Point-and-Click Access to the DS3154 Register Set
LEDs for Interrupt, Loss-of-Signal, Transmit Driver Monitor, and PRBS Sync
Banana Jack Connectors for V_DD and GND Support Use of Lab Power Supplies
Separate DS3154 V_DD to Enable I_DD Measurements
Easy-to-Read Silk Screen Labels Identify the Signals Associated with All Connectors, Jumpers and LEDs

The DS3154DK is an easy-to-use evaluation kit for the DS3154 quad DS3/E3/STS-1 LIU. A surface-mounted DS3154 and careful layout of the analog signal traces provide maximum signal integrity to demonstrate the transmit and receive capabilities of the DS3154. On-board Dallas 8051-compatible microcontroller and included software give point-and-click access to configuration and status registers from a personal computer. LEDs on the board indicate interrupt, loss-of-signal, transmit driver monitor, and PRBS sync status for all four ports. The board provides BNC connectors for the line-side transmit and receive differential pairs and a 50-pin connector for framer interface signals. All LEDs and connectors are clearly labeled with silk-screening to identify associated signals.
