DS26C32AM

Features:

CMOS design for low power
±0.2V sensitivity over input common mode voltage range
Typical propagation delays: 19 ns
Typical input hysteresis: 60 mV
Inputs won't load line when V_CC = 0V
Meets the requirements of EIA standard RS-422
TRI-STATE outputs for connection to system buses
Available in Surface Mount
Mil-Std-883C compliant




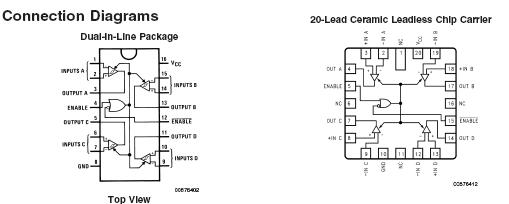

Pinout






Specifications

Standard	RS-232
Drivers	0
Receivers	4
SupplyVoltage	5 Volt
Process	CMOS
Temperature Min	-55 deg C
Temperature Max	125 deg C
Function	1:n Repeater
AEC Q-100 Automotive Grade	0
View Using Catalog

Supply Voltage (V_CC) ......................................................................7V
Common Mode Range (V_CM) ......................................................±14V
Differential Input Voltage (V _DIFF).............................................. ±14V
Enable Input Voltage (V _IN) .............................................................7V
Storage Temperature Range (T _STG) ......................−65°C to +150°C
Lead Temperature (Soldering 4 sec.) ........................................260°C
Maximum Power Dissipation at 25°C (Note 5)
Ceramic "J" Pkg. ....................................2308 mW
Plastic "N" Pkg. ....................................1645 mW
SOIC "M" Pkg. .......................................1190 mW
Ceramic "E" Pkg. ...................................2108 mW
Ceramic "W" Pkg. ..................................1215 mW
Maximum Current Per Output..................................................... ±25 mA




Description

The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS.

The DS26C32A has an input sensitivity of 200 mV over the common mode input voltage range of ±7V. The DS26C32A features internal pull-up and pull-down resistors which prevent output oscillation on unused channels.

The DS26C32A provides an enable and disable function common to all four receivers, and features TRI-STATE ® outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A and the AM26LS32.

Reliability Metrics

---

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
DS26C32A MD8	CS200*	0	9850	0	0	3375000	2	957665465
DS26C32AME/883	CS200*	0	9850	0	0	3375000	2	957665465
DS26C32AMJ/883	CS200*	0	9850	0	0	3375000	2	957665465
DS26C32AMW/883	CS200*	0	9850	0	0	3375000	2	957665465
DS26C32AMWG/883	CS200*	0	9850	0	0	3375000	2	957665465

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.




The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS.

The DS26C32A has an input sensitivity of 200 mV over the common mode input voltage range of ±7V. The DS26C32A features internal pull-up and pull-down resistors which prevent output oscillation on unused channels.

The DS26C32A provides an enable and disable function common to all four receivers, and features TRI-STATE ® outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A and the AM26LS32.
