DIR1703

Standard Digital Audio Interface Receiver(EIAJ1201)
Sampling Rate: 32 / 44.1 / 48 / 88.2 / 96 kHz
Recover 128 / 256 / 384 / 512 fs System Clock
Very Low Jitter System Clock Output (75 psTypically)
On-Chip Master Clock Oscillator, Only an
   External Crystal Is Required:
   24.576 / 22.5792 / 18.432 / 16.9344 / 16.384 /
   12.288 / 11.2896 / 8.192 / 6.144 / 5.6448 /
   4.096 MHz Crystals Are Available
Selectable Output PCM Audio Data Format
Selectable Crystal Clock and PPL ClockOperation Mode
Output User Bit Data, Flag Signals, and
   Channel Status Data With Block Start Signal
Single 3.3-V Power Supply

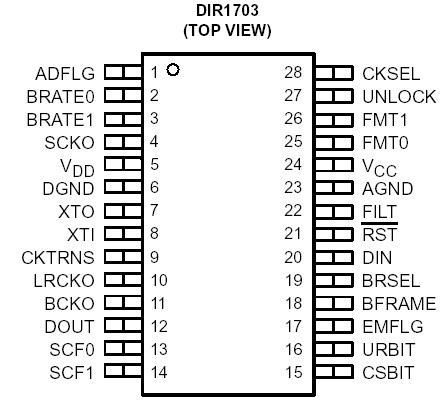

Package: 28 SSOP

The DIR1703 is a digital audio interface receiver(DIR) which receives and decodes audio data upto 96 kHz according to the AES/EBU, IEC958,S/PDIF, and EIAJCP340/1201 consumer andprofessional format interface standards. The DIR1703 demultiplexes the channel status bit anduser bit directly to serial output pins, and hasdedicated output pins for the most importantchannel status bits. It also includes extensiveerrors reporting.

The significant advantages of the DIR1703 are96-kHz sampling rate capability and Low-jitterclock recovery by the Sampling Period AdaptiveControlled Tracking (SpAct) system. The inputsignal is reclocked with the patented Samplingperiod Adaptive controlled tracking system formaximum quality. These features are required forrecent consumer and professional audioinstruments, in which the DIR has an interface toany kind of delta-sigma type ADC/DAC with a96-kHz sampling rate.
