Product Details

Description



Features:

STANDARD DIGITAL AUDIO INTERFACERECEIVER (EIAJ1201)
SAMPLING RATE: 32/44.1/48/96kHz
RECOVERS 256/384/512fS SYSTEM CLOCKS
VERY LOW CLOCK JITTER:100ps (with 20pF load)
FLEXIBLE SYSTEM CLOCK OUTPUT
SELECTABLE OUTPUT PCM AUDIO
DATA FORMAT
XTAL CLOCK/PLL CLOCK
OPERATION MODES
SELECTABLE ERROR FLAG FUNCTION
OUTPUTS CHANNEL STATUS DATA
FLAG WITH BLOCK START SIGNAL
OUTPUTS USER BIT DATA
SINGLE +5V POWER SUPPLY
28-LEAD SSOP PACKAGE

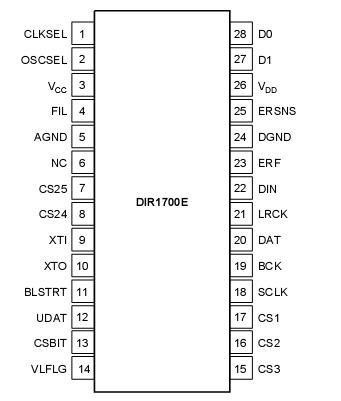

Pinout

Connection Diagram


Specifications

Supply Voltages: +VDD ......................................................... ±6.5V
                           +VCC ......................................................... ±6.5V
Input Voltage......................................................0.3 to VDD +0.3V
Input Current....................................................................... ±10mA
Operating Temperature Range ............................... 25 to +85
Storage Temperature Range ................................. 55 to +125


Description

DIR1700 is a Digital Audio Interface Receiver (DIR)which is designed for consumer and professional digital audio applications, such as digital AV receivers.DIR1700 has two system clock operation modes:internal PLL operation mode and XTAL clock operation mode for systems which contain both digital andanalog inputs. The advantages of the DIR1700 arevery low clock jitter, and 96kHz sampling rate capa-bility. These features are now required for consumer and professional audio systems.
