CY7B9911V

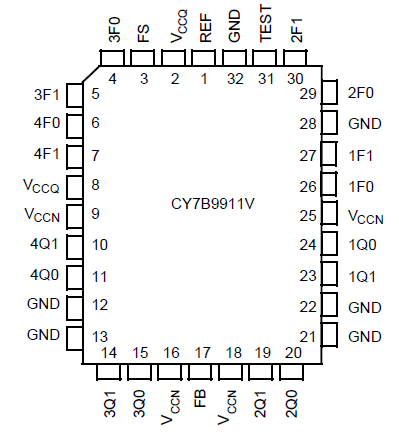

The CY7B9911V 3.3V RoboClock+™ High-Speed Low- Voltage Programmable Skew Clock Buffer (LVPSCB) offers user-selectable control over system clock functions. These multiple-output clock drivers provide the system integrator with functions necessary to optimize the timing of high-performance computer systems. Eight individual drivers, arranged as four pairs of user-controllable outputs, CY7B9911V can each drive terminated transmission lines with impedances as low as 50 while delivering minimal and specified output skews and full-swing logic levels (LVTTL).

Each output of CY7B9911V can be hardwired to one of nine delay or function configurations. Delay increments of 0.7 to 1.5 ns are determined by the operating frequency with outputs able to skew up to ±6 time units from their nominal "zero" skew position. The completely integrated PLL allows external load and transmission line delay effects to be canceled. When this "zero delay" capability of the LVPSCB CY7B9911V is combined with the selectable output skew functions, the user can create output-to-output delays of up to ±12 time units.

Divide-by-two and divide-by-four output functions of CY7B9911V are provided for additional flexibility in designing complex clock systems. When combined with the internal PLL, these divide functions allow distribution of a low-frequency clock, CY7B9911V can be multiplied by two or four at the clock destination. This facility minimizes clock distribution difficulty while allowing maximum system clock speed and flexibility.
