CY7B9532V

Features: • SONET OC-48 operation• Full Bellcore and ITU jitter compliance• 2.488-GBaud serial signaling rate• Multiple selectable loopback/loop-through modes• Single 155.52-MHz reference clock• Transmit FIFO for flexible data interface clocking• 16-bit pa...

product image

CY7B9532V Picture
See larger image
SeekIC No. : 004319565 Detail

CY7B9532V: Features: • SONET OC-48 operation• Full Bellcore and ITU jitter compliance• 2.488-GBaud serial signaling rate• Multiple selectable loopback/loop-through modes• Single 1...

CY7B9532V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7B9532V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• SONET OC-48 operation
• Full Bellcore and ITU jitter compliance
• 2.488-GBaud serial signaling rate
• Multiple selectable loopback/loop-through modes
• Single 155.52-MHz reference clock
• Transmit FIFO for flexible data interface clocking
• 16-bit parallel-to-serial conversion in transmit path
• Serial to 16-bit parallel conversion in receive path
• Synchronous HSTL parallel interface
  -Drives Low-Z transmission lines
  -No resistors for short (70-mm) interconnect
  -LVPECL compliant
• Internal transmit and receive PLLs
• Differential CML serial input
  -Internal termination and DC-restoration
• Differential CML serial output
  -Source matched for 50 transmission lines
• Direct interface to standard fiber-optic modules
• Single +3.3V supply (1.3W typ.)
• 120-pin 14 mm x 14 mm TQFP
• Standby power-saving mode for inactive loops
• 0.25 BiCMOS technology


Pinout

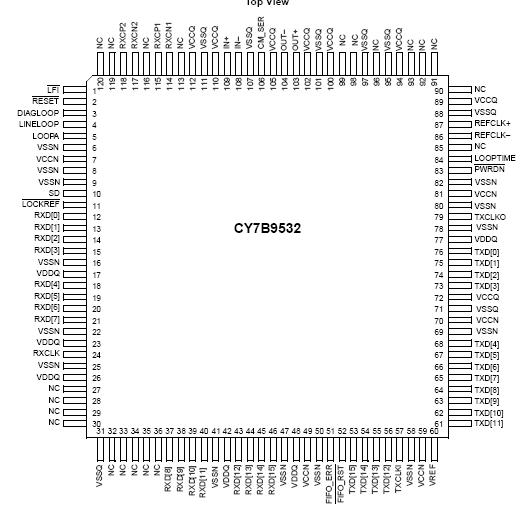

Connection Diagram


Specifications

(Above which the useful life may be impaired. ................For user guidelines, not tested.)
Storage Temperature ................................. 65°C to +150°C Ambient Temperature with
Power Applied ......................................................................................... 55°C to +125°C
VCC Supply Voltage to Ground Potential..................................................... 0.5V to +4.2V
VDDQ Supply Voltage to Ground Potential .................................................. 0.5V to +3.0V
DC Voltage Applied to HSTL Outputs
in High-Z State............................ ....................................................... 0.5V to VDDQ+0.5V
DC Voltage Applied to Other Outputs
in High-Z State.........................................................................................0.5V to VCC+0.5V
Output Current into LVTTL Outputs (LOW) ................................................................ 30 mA
DC Input Voltage ..................................................................................... 0.5V to VCC+0.5V
Static Discharge Voltage........................................> 2001 V (per MIL-STD-883, Method 3015)
Latch-Up Current........................................ ............................................................> 200 mA


Description

The CY7B9532V SONET OC-48 Transceiver is a communications building block for high-speed SONET data communications. CY7B9532V provides complete parallel-to-serial and serial-to-parallel
conversion in a single chip, optimized for full SONET compliance.
