CY28442

Features: • Compliant to Intel® CK410M• Supports Intel Pentium-M CPU• Selectable CPU frequencies• Differential CPU clock pairs• 100-MHz differential SRC clocks• 96-MHz differential dot clock• 48-MHz USB clocks• SRC clocks independently stoppable ...

product image

CY28442 Picture
See larger image
SeekIC No. : 004319255 Detail

CY28442: Features: • Compliant to Intel® CK410M• Supports Intel Pentium-M CPU• Selectable CPU frequencies• Differential CPU clock pairs• 100-MHz differential SRC clocks̶...

CY28442 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28442
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant to Intel® CK410M
• Supports Intel Pentium-M CPU
• Selectable CPU frequencies
• Differential CPU clock pairs
• 100-MHz differential SRC clocks
• 96-MHz differential dot clock
• 48-MHz USB clocks
• SRC clocks independently stoppable through CLKREQ#[A:B]
• 96/100 MHz Spreadable differential clock.
• 33-MHz PCI clock
• Low-voltage frequency select input
• I2C support with readback capabilities
• Ideal Lexmark Spread Spectrum profile for maximum electromagnetic interference (EMI) reduction
• 3.3V power supply
• 56-pin TSSOP package

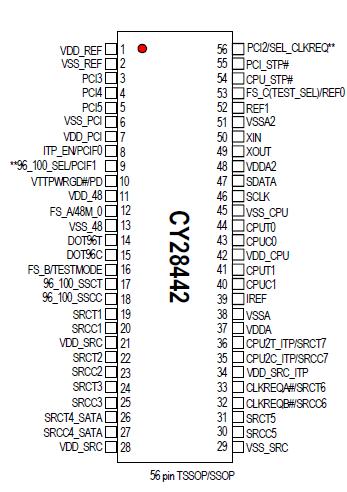

Pinout

Connection Diagram


Specifications

Parameter Description Condition Min. Max. Unit
VDD Core Supply Voltage   0.5 4.6 V
VDD_A Analog Supply Voltage   0.5 4.6 V
VIN Input Voltage Relative to VSS 0.5 VDD + 0.5 VDC
TS Temperature, Storage Non-functional 65 150 °C
TA Temperature, Operating Ambient Functional 0 85 °C
TJ Temperature, Junction Functional 150 °C
ØJC Dissipation, Junction to Case
 Mil-STD-883E Method 1012.1 20 °C/W
ØJA Dissipation, Junction to Ambient
 JEDEC (JESD 51) 60 °C/W
ESDHBM ESD Protection (Human Body Model) MIL-STD-883, Method 3015 2000
V
UL-94 Flammability Rating At 1/8 in. V0
MSL Moisture Sensitivity Level   1
