CY28158

• Maximized EMI suppression using Cypress's spread spectrum technology
• Based on Industry Standard CK133 Pinout with all outputs compliant to CK98 specifications
• 0.5% downspread outputs deliver up to 10dB lower EMI
• 6 skew-controlled copies of CPU output
• 6 copies of PCI output (synchronous w/CPU output)
• 2 copies of 66 MHz fixed frequency 3.3V clock
• 3 copies of 16.67 MHz IOAPIC clock, synchronous to CPU clock
• 1 copy of 48 MHz USB output
• 2 copies of 14.31818 MHz reference clock
• Programmable to 133 or 100 MHz operation
• Power management control pins for clock stop and shut down

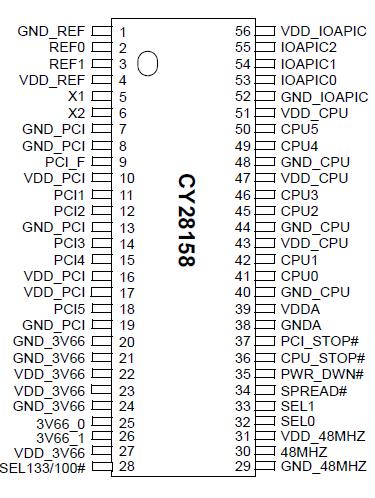

• Available in 56-pin SSOP

Supply Voltage...................................................0.5 to +7.0V
Input Voltage.............................................. 0.5V to V_DD+0.5
Storage Temperature (Non-Condensing) ... 65°C to +150°C
Max. Soldering Temperature (10 sec) ........................ +260°C
Junction Temperature................................................. +150°C
Package Power Dissipation................................................ 1W
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ............................... >2000V
