CY28405-2

Features: • Supports Intel® Pentium® 4-type CPUs• Selectable CPU frequencies• 3.3V power supply• Nine copies of PCI clocks• Four copies of 3V66 with one optional VCH• Two copies 48-MHz clock• Three differential CPU clock pairs• One differenti...

product image

CY28405-2 Picture
See larger image
SeekIC No. : 004319245 Detail

CY28405-2: Features: • Supports Intel® Pentium® 4-type CPUs• Selectable CPU frequencies• 3.3V power supply• Nine copies of PCI clocks• Four copies of 3V66 with one optiona...

CY28405-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28405-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports Intel® Pentium® 4-type CPUs
• Selectable CPU frequencies
• 3.3V power supply
• Nine copies of PCI clocks
• Four copies of 3V66 with one optional VCH
• Two copies 48-MHz clock
• Three differential CPU clock pairs
• One differential SRC clock
• Support SMBus/I2C Byte, Word and Block Read/ Write
• Ideal Lexmark Spread Spectrum profile for maximum electromagnetic interference (EMI) reduction
• 48-pin SSOP package

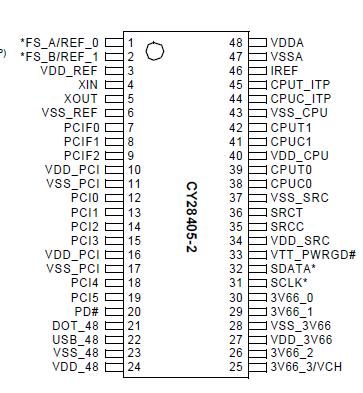

Pinout

Connection Diagram


Specifications

Parameter Description Condition
Min.
Max.
Unit
VDD Core Supply Voltage
0.5
4.6
V
VDD_A Analog Supply Voltage
0.5
4.6
V
VIN Input Voltage Relative to VSS
0.5
VDD+0.5
VDC
TS Temperature, Storage Non-functional
65
+150
°C
TA Temperature, Operating Ambient Functional
0
70
°C
TJ Temperature, Junction Functional
150
°C
ØJC Dissipation, Junction to Case Mil-Spec 883E Method 1012.1
20
°C/W
ØJA Dissipation, Junction to Ambient JEDEC (JESD 51)
60
°C/W
ESDHBM ESD Protection (Human Body Model) MIL-STD-883, Method 3015 2000
UL-94 Flammability Rating At 1/8 in.
V0
MSL Moisture Sensitivity Level
1
Multiple Supplies: The Voltage on any input or I/O pin cannot exceed the power pin during power-up. Power supply sequencing is NOT required
