CY28378

• Compatible with Intel^® CK-Titan and CK-408 Clock Synthesizer/Driver specifications
• System frequency synthesizer for Intel Brookdale 845 and Brookdale G Pentium 4^® chipsets
• Programmable clock output frequency with less than 1-MHz increment
• Integrated fail-safe Watchdog timer for system recovery
• Automatically switch to HW selected or SW programmed clock frequency when Watchdog timer time-out
• Programmable 3V66 and PCI output frequency mode
• Capable of generating system RESET after a Watchdog timer time-out or a change in output frequency via SMBus interface occurs
• Support SMBus byte read/write and block read/ write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength support
• Programmable output skew support
• Power management control inputs

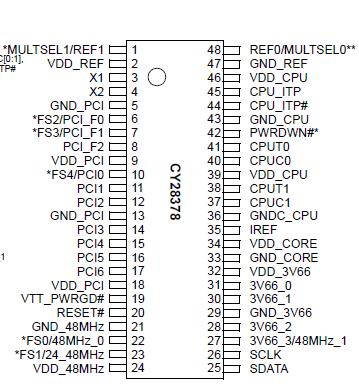

• Available in 48-pin SSOP
