Features: • Up to 200 MHz operation• Phase-locked loop clock distribution for Double Data Rate Synchronous DRAM applications• Distributes one clock input to six differential outputs• External feedback pin FBIN is used to synchronize the outputs to the clock input• Con...
CY28358: Features: • Up to 200 MHz operation• Phase-locked loop clock distribution for Double Data Rate Synchronous DRAM applications• Distributes one clock input to six differential output...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
This PLL clock buffer is designed for 2.5 VDD and 2.5 AVDD operation and differential output levels.

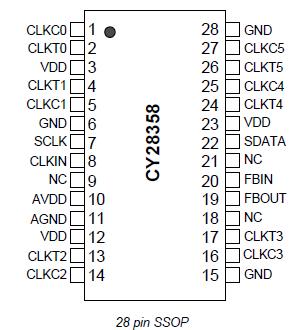

This CY28358 is a zero delay buffer that distributes a clock input CLKIN to six differential pairs of clock outputs (CLKT[0:5], CLKC[0:5]) and one feedback clock output FBOUT. The clock outputs are controlled by the input clock CLKIN and the feedback clock FBIN.
The two line serial bus can set each output clock pair (CLKT[0:5], CLKC[0:5]) to the Hi-Z state. When AVDD is grounded, the PLL is turned off and bypassed for test purposes. The PLL in CY28358 uses the input clock CLKIN and the feedback clock FBIN to provide high-performance, low-skew, lowjitter output differential clocks.
