CY28352

Features: • 60- 200-MHz operating frequency• Phase-locked loop (PLL) clock distribution for double data rate synchronous DRAM applications• Distributes one clock input to six differential outputs• External feedback pin FBIN is used to synchronize output to clock input̶...

product image

CY28352 Picture
See larger image
SeekIC No. : 004319234 Detail

CY28352: Features: • 60- 200-MHz operating frequency• Phase-locked loop (PLL) clock distribution for double data rate synchronous DRAM applications• Distributes one clock input to six diff...

CY28352 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28352
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 60- 200-MHz operating frequency
• Phase-locked loop (PLL) clock distribution for double data rate synchronous DRAM applications
• Distributes one clock input to six differential outputs
• External feedback pin FBIN is used to synchronize output to clock input
• Conforms to DDRI specification
• Spread Aware™ for electromagnetic interference (EMI) reduction
• 28-pin SSOP package


Pinout

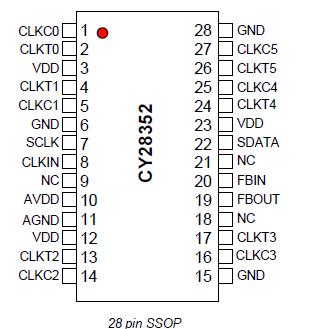

Connection Diagram


Specifications

Input Voltage Relative to VSS:.............................. VSS 0.3V
Input Voltage Relative to VDDQ or AVDD:............ VDD + 0.3V
Storage Temperature: ................................65°C to + 150°C
Operating Temperature: ....................................0°C to +70°C
Maximum Power Supply: ................................................3.5V
This device contains circuitry to protect the inputs against
damage due to high static voltages or electric field; however,
precautions should be taken to avoid application of any
voltage higher than the maximum rated voltages to this circuit.
For proper operation, VIN and VOUT should be constrained to
the range:
VSS < (VIN or VOUT) < VDD.
Unused inputs must always be tied to an appropriate logic
voltage level (either VSS or VDD).


Description

This PLL clock buffer is designed for 2.5-VDD and 2.5-AVDD operation and differential output levels.

CY28352 is a zero delay buffer that distributes a clock input CLKIN to six differential pairs of clock outputs (CLKT[0:5], CLKC[0:5]) and one feedback clock output FBOUT. The clock outputs are controlled by the input clock CLKIN and the feedback clock FBIN.

The two-line serial bus can set each output clock pair (CLKT[0:5], CLKC[0:5]) to the Hi-Z state. When AVDD is grounded, the PLL is turned off and bypassed for test purposes.

The PLL in CY28352 uses the input clock CLKIN and the feedback clock FBIN to provide high-performance, low-skew, lowjitter output differential clocks.
