CY28349

Features: • Compatible to Intel® CK-Titan & CK-408 Clock Synthesizer/ Driver Specifications• System frequency synthesizer for Intel Brookdale 845 and Brookdale - G Pentium® 4 Chipsets• Programmable clock output frequency with less than 1 MHz increment• Integrate...

product image

CY28349 Picture
See larger image
SeekIC No. : 004319231 Detail

CY28349: Features: • Compatible to Intel® CK-Titan & CK-408 Clock Synthesizer/ Driver Specifications• System frequency synthesizer for Intel Brookdale 845 and Brookdale - G Pentium® 4...

CY28349 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28349
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible to Intel® CK-Titan & CK-408 Clock Synthesizer/ Driver Specifications
• System frequency synthesizer for Intel Brookdale 845 and Brookdale - G Pentium® 4 Chipsets
• Programmable clock output frequency with less than 1 MHz increment
• Integrated fail-safe Watchdog timer for system recovery
• Automatically switch to HW selected or SW
programmed clock frequency when watchdog timer time-out
• Fixed 3V66 and PCI output frequency mode
• Capable of generating system RESET after a Watchdog timer time-out occurs or a change in output frequency via SMBus interface
• Support SMBus byte read/write and block read/ write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength support
• Programmable output skew support
• Power management control inputs
• Available in 48-pin SSOP

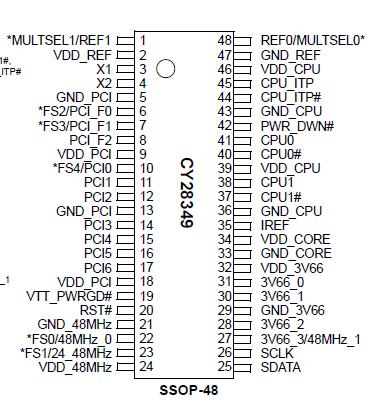

Pinout

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Supply Voltage ..................................................0.5 to +7.0V
Input Voltage .............................................. 0.5V to VDD+0.5
Storage Temperature (Non-Condensing).... 65°C to +150°C
Max. Soldering Temperature (10 sec) ...................... +260°C
Junction Temperature............................................... +150°C
Package Power Dissipation..............................................1W
Static Discharge Voltage.........................................................
(per MIL-STD-883, Method 3015) ............................. >2000V
