CY28341

• Supports VIA P4M266/KM266 chipsets
• Supports Pentium® 4, Athlon™ processors
• Supports two DDR DIMMS
• Supports three SDRAMS DIMMS at 100 MHz
• Provides:
      -Two different programmable CPU clock pairs
      -Six differential SDRAM DDR pairs
      -Three low-skew/low-jitter AGP clocks
      -Seven low-skew/low-jitter PCI clocks
      -One 48M output for USB
      -One programmable 24M or 48M for SIO
• Dial-a-Frequency™ and Dial-a-dB features
• Spread Spectrum for best electromagnetic interference (EMI) reduction
• Watchdog feature for systems recovery
• SMBus-compatible for programmability

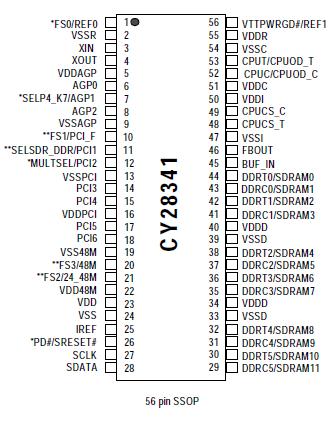

• 56-pin SSOP and TSSOP packages

Input Voltage Relative to V_SS.............................. VSS 0.3V
Input Voltage Relative to V_DDQ or A_VDD ............. VDD + 0.3V
Storage Temperature ...............................65°C to + 150°C
Operating Temperature....................................0°C to +70°C
Maximum ESD..............................................................2000V
Maximum Power Supply..................................................5.5V
