CY28326

Features: • Supports P4®CPUs• 3.3V power supply• Ten copies of PCI clocks• One 48 MHz USB clock• Two copies of 25 MHz for SRC/LAN clocks• One 48 MHz/24 MHz programmable SIO clock• Three differential CPU clock pairs• SMBus support with Byte Write/...

product image

CY28326 Picture
See larger image
SeekIC No. : 004319219 Detail

CY28326: Features: • Supports P4®CPUs• 3.3V power supply• Ten copies of PCI clocks• One 48 MHz USB clock• Two copies of 25 MHz for SRC/LAN clocks• One 48 MHz/24 MHz pr...

CY28326 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28326
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports P4®CPUs
• 3.3V power supply
• Ten copies of PCI clocks
• One 48 MHz USB clock
• Two copies of 25 MHz for SRC/LAN clocks
• One 48 MHz/24 MHz programmable SIO clock
• Three differential CPU clock pairs
• SMBus support with Byte Write/Block Read/Write capabilities
• Spread Spectrum EMI reduction
• Dial-A-Frequency® features
• Auto Ratio features
• 48-pin SSOP package

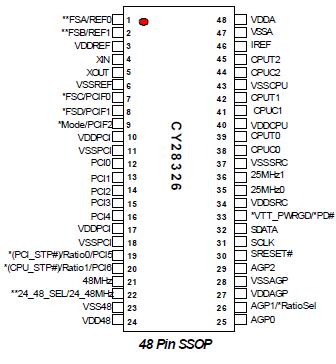

Pinout

Connection Diagram


Specifications

Parameter Description Condition Min. Max. Unit
VDD Core Supply Voltage   0.5 4.6 V
VDDA Analog Supply Voltage   0.5 4.6 V
VIN Input Voltage Relative to V SS 0.5 VDD + 0.5 VDC
TS Temperature, Storage Non Functional 65 +150
TA Temperature, Operating Ambient Functional 0 70
TJ Temperature, Junction Functional - 150
ESDHBM ESD Protection (Human Body Model) MIL-STD-883, Method 3015 2000 - V
ØJC Dissipation, Junction to Case Mil-Spec 883E Method 1012.1 36.92 /W
ØJA Dissipation, Junction to Ambient JEDEC (JESD 51) 83.52 /W
UL94 Flammability Rating At 1/8 in. V0
MSL Moisture Sensitivity Level   1
Multiple Supplies: The Voltage on any input or I/O pin cannot exceed the power pin during power-up. Power supply sequencing is NOT required.
