CY28317-2

Features: • Single-chip system frequency synthesizer for mobile VIA PL133T and PLE133T chipsets• Programmable clock output frequency with less than 1 MHz increment• Integrated fail-safe Watchdog Timer for system recovery• Automatic switch to HW-selected or SW-programmed clo...

product image

CY28317-2 Picture
See larger image
SeekIC No. : 004319214 Detail

CY28317-2: Features: • Single-chip system frequency synthesizer for mobile VIA PL133T and PLE133T chipsets• Programmable clock output frequency with less than 1 MHz increment• Integrated fail...

CY28317-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY28317-2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-chip system frequency synthesizer for mobile
   VIA PL133T and PLE133T chipsets
• Programmable clock output frequency with less than
   1 MHz increment
• Integrated fail-safe Watchdog Timer for system recovery
• Automatic switch to HW-selected or SW-programmed
   clock frequency when Watchdog Timer time-out occurs
• System RESET generation capability after a Watchdog
   Timer time-out occurs or a change in output frequency
   via SMBus interface
• Support SMBus byte Read/Write and block Read/ Write
   operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength for SDRAM and PCI
   output clocks
• Programmable output skew for CPU, PCI and SDRAM
• Maximized EMI Suppression using Cypress's Spread
   Spectrum technology
• Available in 48-pin SSOP and TSSOP packages

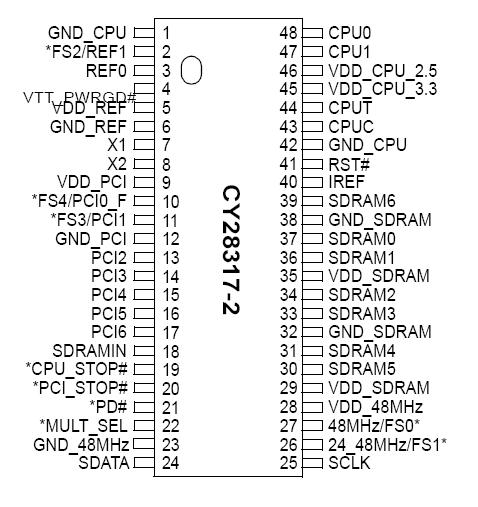

Pinout

Connection Diagram


Specifications

Parameter Description Rating Unit
VDD,VIN Voltage on any pin with respect to GND 0.5 to +7.0 V
TSTG Storage Temperature 65 to +150 °C
TA Operating Temperature 55 to +125 °C
TB Ambient Temperature under Bias 0 to +70 °C
ESDPROT Input ESD Protection 2 (min.) KV
