CXK5T16100TM

Features: • Extended operating temperature range: 25 to +85°C• Wide supply voltage range operation: 2.7 to 3.6V• Fast access time: (Access time) 3.0V operation 120ns (max.) 3.3V operation 100ns (max.)• Low power consumption operation: Standby / DC operation 1.6µW (typ...

product image

CXK5T16100TM Picture
See larger image
SeekIC No. : 004318695 Detail

CXK5T16100TM: Features: • Extended operating temperature range: 25 to +85°C• Wide supply voltage range operation: 2.7 to 3.6V• Fast access time: (Access time) 3.0V operation 120ns (max.) 3.3V op...

CXK5T16100TM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXK5T16100TM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extended operating temperature range: 25 to +85°C
• Wide supply voltage range operation: 2.7 to 3.6V
• Fast access time: (Access time)
  3.0V operation 120ns (max.)
  3.3V operation 100ns (max.)
• Low power consumption operation:
  Standby / DC operation
  1.6µW (typ.) / 3.3mW (typ.)
  100µW (max.) / 11mW (max.)
• Fully static memory ``` No clock or timing strobe required
• Equal access and cycle time
• Common data input and output: three state output
• Directly LVTTL compatible: All inputs and outputs
• Low voltage data retention: 2.0V (min.)
• 400mil 44pin TSOP (type II) package


Pinout

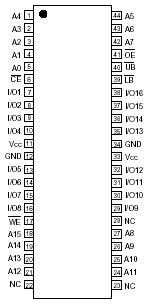

Connection Diagram




Specifications

Item Symbol Rating Unit
Supply voltage VCC 0.5 to +4.6 V
Input voltage VIN 0.5*1 to VCC + 0.5 V
Input and output voltage VI/O 0.5*1 to VCC + 0.5 V
Allowable power dissipation PD 0.7 W
Operating temperature Topr 25 to +85 °C
Storage temperature Tstg 55 to +150 °C
Soldering temperature ` time Tsolder 235 ` 10 °C`s



Description

The CXK5T16100TM is a general purpose high speed CMOS static RAM organized as 65536-words by 16-bits.

Special feature are low power consumption and high speed.

The CXK5T16100TM is a suitable RAM for portable equipment with battery back up.
