CXK5B16120J

Features: • Single 3.3V Supply 3.3V±0.3V• Fast access time 12ns (Max.)• Low stand-by current: 10mA (Max.)• Low power operation 972mW (Max.)• Package line-up Dual Vcc/Vss CXK5B16120J 400mil 44pin SOJ Package CXK5B16120TM 400mil 44pin TSOP PackagePinoutSpecifications ...

product image

CXK5B16120J Picture
See larger image
SeekIC No. : 004318690 Detail

CXK5B16120J: Features: • Single 3.3V Supply 3.3V±0.3V• Fast access time 12ns (Max.)• Low stand-by current: 10mA (Max.)• Low power operation 972mW (Max.)• Package line-up Dual Vcc/Vs...

CXK5B16120J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXK5B16120J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3V Supply 3.3V±0.3V
• Fast access time 12ns (Max.)
• Low stand-by current: 10mA (Max.)
• Low power operation 972mW (Max.)
• Package line-up
   Dual Vcc/Vss
   CXK5B16120J 400mil 44pin SOJ Package
   CXK5B16120TM 400mil 44pin TSOP Package


Pinout

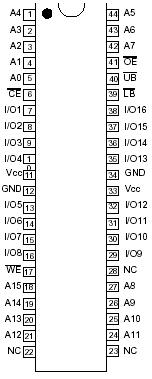

Connection Diagram




Specifications

Item Symbol   Rating Unit
Supply voltage VCC 0.5*1 to +4.6 V
Input voltage VIN 0.5*1 to VCC + 0.5 V
Input and output voltage VI/O 0.5*1 to VCC + 0.5 V
Allowable power dissipation PD 1.5*2 W
Operating temperature Topr 0 to +70 °C
Storage temperature Tstg 55 to +150 °C
Soldering temperature ` time Tsolder J 260 • 10
 °C ` sec
TM 235 ` 10 °C ` sec



Description

CXK5B16120J/TM is a high speed 1M bit Bi-CMOS static RAM organized as 65536 words by 16 bits. Operating on a single 3.3V supply this asynchronous IC is suitable for use in high speed and low power applications.
