Features:

• Transmitter and receiver in a single chip
• TTL/ECL compatible
• Single +3.3 V power supply
• PLL for clock generation and clock / data recovery
• 8:1 Parallel/Serial Converter, 1:8 Serial/Parallel Converter, Frame
   (A1/A1/A1/A2/A2/A2, A1 : 11110110,A2 :00101000 ) detector
• Selectable 4 modes input/output REFCLK (19.44, 25.92, 51.84, 77.76 MHz)
• Adjustable timing between input parallel data and transmitting parallel clock
• Lock detector for a receiver PLL
• Selectable ECL-output 4 signals (retimed data, transmitted bit rate clock, recovered bit rate clock, received serial data through) in a test mode
• Selectable operation clock of transmitter site recovered bit rate clock in a test mode
• Local loop back circuit (parallel data to parallel data)
• Low power consumption (1.0 W typical)
• 80-pin plastic QFP package (body size : 14 mm×14 mm)


Pinout

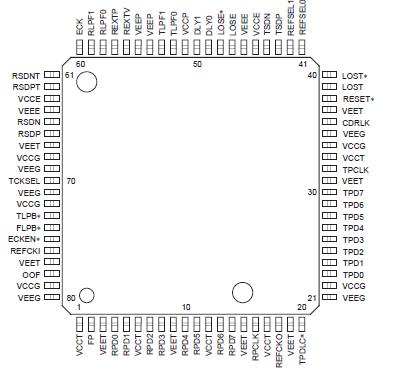

Connection Diagram


Specifications

Description
Symbol
Min.
Typ.
Max.
Unit
Conditions
Power supply voltage
VCC
-0.3
4.0
V
TTL DC input voltage
VI_T
-0.5
5.5
V
ECL DC input voltage
VI_E
VCC2.0
VCC
V
ECL peak-to-peak differential
input voltage swing
VIS_E
-4.0
4.0
V
TTL output current (High)
IOH_T
-20
0
mA
TTL output current (Low)
IOL_T
0
20
mA
ECL output current
IO_E
-30
0
mA
Ambient temperature
Ta
-55
70
Under bias
Storage temperature
Tstg
-65
150



Description

The CXB1590Q is a transceiver IC with built-in PLL for ATM network. For a receiver 622 Mbps serial data is received and output it as the 8-bit parallel data; for a transmitter 622 Mbps 8-bit parallel data is output as the serial data.
