CXB1441R

`􀂋 Two sets of input ports comprising three pairs of differential data signals and one pair of differential clock signals
`􀂋 50 termination pull-up resistors built into differential data and clock inputs
`􀂋 Low differential data and clock input capacitance facilitates the design and manufacture of TDR standard
compatible equipment
`􀂋 Equalizer circuit that compensates cable attenuation improves the signal eye pattern
`􀂋 Output 50 load drive, voltage amplitude 0.5Vp-p
`􀂋 Single +3.3V power supply
`􀂋 Low power consumption

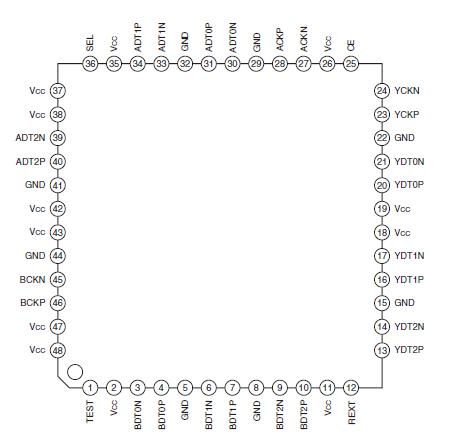

`􀂋 Lead-free 48-pin plastic LQFP package (7mm * 7mm)

The CXB1441R is a cable equalizer that compensates the attenuation resulting from cable transfer of smallamplitude
differential NRZ signals.

This chip CXB1441R has two sets of input ports comprising three pairs of differential data signals and one pair of differential clock signals. It equalizes and quantizes the signals from the optional ports and then outputs the signal from the output ports. NRZ signals from 250Mb/s to 1.65Gb/s are supported.
