Features:

• Conforms to ANSI X3T11 Fibre Channel standard
• Single 3.3V power supply
• Low power consumption: 330mW (Typ.)
• Low jitter
• PLL lock detection circuit
• Port bypass circuit
• Small plastic package (24-pin SSOP)

Application

• Fibre channel arbitrated loop 1.0625Gbaud HUB
• Disk array

Pinout

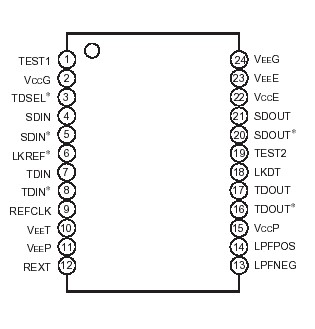

Connection Diagram

Specifications

Description	Symbol	Min.	Typ.	Max.	Unit
Supply voltage	V_CC	0.3		4	V
TTL DC input voltage	VI_T	0.5		5.5	V
ECL DC input voltage	VI_E	V_CC 2		V_CC	V
ECL differential input voltage	VIS_E	2		2	V
TTL output current (High level)	IOH_T	20		0	mA
TTL output current (Low level)	IOL_T	0		20	mA
ECL output current	IO_E	-30		0	mA
Operating ambient temperature	Ta	55		70
Storage temperature	Tstg	65		150

Description

The CXB1585N is a repeater IC with a built-in PLL clock recovery circuit for Fibre Channel 1.06Gbaud. This IC incorporates a port bypass circuit and is suitable for disk array and FC-AL HUB, etc.
