Features:

• Conforms to ANSI X3T11 Fibre channel standard
• Supports GLM (Gigabaud Link Module) interface
• Built-in PLL for synthesizing a low-jitter clock
• Single 3.3V power supply or dual 3.3V/5V power supply (for 5V TTL interface) operation can be selected.
• Low power consumption: 830mW (Typ.) when operating with a single 3.3V power supply
• 1062.5Mbaud, 20-bit or 531.25Mbaud, 10-bit operation can be selected.
• Test pattern (±K28.5) generation circuit


Application

Fibre channel 1062.5Mbaud and 531.25Mbaud communications


Pinout

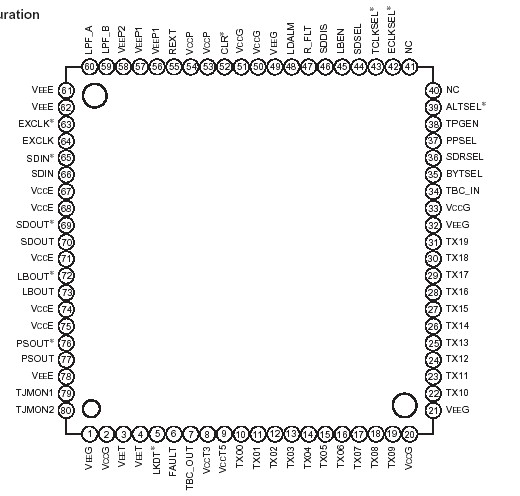

Connection Diagram


Specifications

Item
Symbol
Min.
Typ.
Max.
Unit
Supply voltage (excluding VCCT5)
VCC
0.3
4
V
Supply voltage for TTL output
VCCT5
VCCG 2,
or 0.3
VCCG + 5,
or 5.5
V
TTL DC input voltage
VI_T
0.5
5.5
V
ECL DC input voltage
VI_E
VCC 2
VCC
V
ECL differential input voltage
VIS_E
2
2
V
TTL output current (High level)
IOH_T
20
0
mA
TTL output current (Low level)
IOL_T
0
20
mA
ECL output current
IO_E
-30
0
mA
Operating ambient temperature
Ta
55
70
Storage temperature
Tstg
65
150



Description

The CXB1581Q is a transmitter IC with a built-in PLL for high-speed serial data transmission. It can be used together with the receiver IC CXB1582Q as a chip set, and 1062.5Mbaud, 20-bit or 531.25Mbaud, 10-bit operation can be selected.
