CXA3562R

Features: • Supports 10-bit 2-parallel and single input• Supports signals up to UXGA (1/2 clock when using UXGA signals)• Low output deviation by on-chip output offset cancel circuit• Supports both line inversion and dot and line inversion• On-chip timing generator wi...

product image

CXA3562R Picture
See larger image
SeekIC No. : 004318381 Detail

CXA3562R: Features: • Supports 10-bit 2-parallel and single input• Supports signals up to UXGA (1/2 clock when using UXGA signals)• Low output deviation by on-chip output offset cancel circu...

CXA3562R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3562R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports 10-bit 2-parallel and single input
• Supports signals up to UXGA (1/2 clock when using UXGA signals)
• Low output deviation by on-chip output offset cancel circuit
• Supports both line inversion and dot and line inversion
• On-chip timing generator with ECL
• VCOM voltage generation circuit
• Precharge pulse waveform generation circuit


Application

• LCD projectors and other video equipment


Pinout

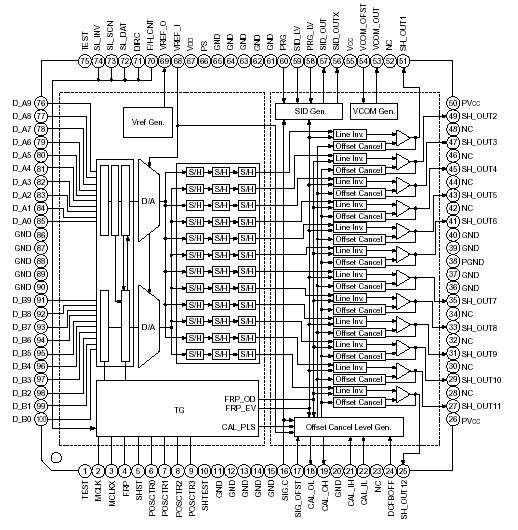

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . .16 V
                           VDD . . . . . . . . . . . . . . . . . . . . . . . . .  . 5.5 V
• Operating temperature Topr  . . . . . . . . . . .20 to +70 °C
• Storage temperature Tstg  . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . .2300 mW


Description

The CXA3562R is a driver IC developed for use with Sony polycrystalline silicon TFT LCD panels. supports digital 2-parallel and single input, and the input data is analog demultiplexed into 12 phases and output. The CXA3562R can directly drive an LCD panel, and the VCOM setting circuit and precharge pulse waveform generator are also on-chip.
