Product Details

Description



Features:

• Wide gain control range
• Linear gain slope
• Noise figure Typ. 6dB at Gain = 45dB
• Output IP3 Typ. +2dBm at Gain = 40dB
• 2 input ports
• Power save function included


Pinout

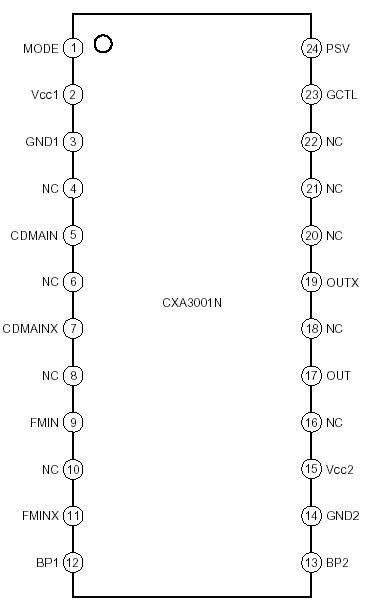

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . .. .6 V
•Operating temperature Topr  . . . . . . . . . ..40 to +85 °C
• Storage temperature Tstg  . . . . . . . . . ..65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . .420 mW
• Supply voltage range  . . . . . . . . . . . . . . . . . .0.3 to 6 V
• Logic input voltage  . . . . . . . . . . . . . .0.3 to VCC +0.3 V
• Signal input voltage  . . . . . . . . . . . . .0.3 to VCC +0.3 V
• Differential signal input voltage . . . . . . . . . .. . 0 to 2.5 V


Description

CXA3001N is an RX gain control amplifier for CDMA cellular mobile phone.
