CXA3510N

Features: • Operate on single +5 V power supply• Low power consumption Read : 85 mW Write : 115 mW + IW *5 Idle : 8 mW• Designed for two terminal thin-film or MIG heads• Read amplifier emitter follower output featuring 325 times gain (typ).• Differential input capacit...

product image

CXA3510N Picture
See larger image
SeekIC No. : 004318373 Detail

CXA3510N: Features: • Operate on single +5 V power supply• Low power consumption Read : 85 mW Write : 115 mW + IW *5 Idle : 8 mW• Designed for two terminal thin-film or MIG heads• Read...

CXA3510N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3510N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operate on single +5 V power supply
• Low power consumption
    Read : 85 mW
    Write : 115 mW + IW *5
     Idle : 8 mW
• Designed for two terminal thin-film or MIG heads
• Read amplifier emitter follower output featuring 325 times gain (typ).
• Differential input capacitance for Read : 6pF (typ)
• Input noise : 0.47 nV / Hz (typ)
• Write current range : 5 to 15 mA
• Differential Head voltage swing : 6.8 Vp-p (typ)
• Differential P-ECL write data input
• Built-in write unsafe detection circuit.
• Built-in Servo write function (2/4 ch).
• Built-in IC protection circuit for short of head to GND.
• Read data outputs are high impedance in write mode.
• Unselected head voltage is GND potential.
• Built-in supply voltage monitor circuit prohibits incorrect write during power on or abnormal voltage.
• Self switching damping resistance (RD = 350 ).


Pinout

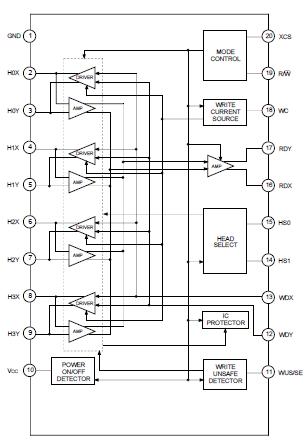

Connection Diagram


Specifications

• Supply voltage VCC ......................................6 V
• Write current IW ................................20 mAo-p
• Operating temperature Topr ....20 to +75 °C
• Storage temperature Tstg ......55 to +150 °C
• Allowable power dissipation PD ...........620 mW
• WUS/SE pin input current ISEH ................15 mA


Description

The CXA3510N is a Read/Write Amplifier for the thin film head of hard disk drive and designed to handle up to 4 channel heads.
