CXA3286R

Features: • Differential linearity error: ±0.5LSB or less• Integral linearity error: ±0.5LSB or less• Maximum conversion rate of 160MSPS• Low input capacitance: 10pF• Power saving function• Wide analog input bandwidth: 250MHz• Low power consumption: 550mW&...

product image

CXA3286R Picture
See larger image
SeekIC No. : 004318367 Detail

CXA3286R: Features: • Differential linearity error: ±0.5LSB or less• Integral linearity error: ±0.5LSB or less• Maximum conversion rate of 160MSPS• Low input capacitance: 10pF• P...

CXA3286R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3286R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Differential linearity error: ±0.5LSB or less
• Integral linearity error: ±0.5LSB or less
• Maximum conversion rate of 160MSPS
• Low input capacitance: 10pF
• Power saving function
• Wide analog input bandwidth: 250MHz
• Low power consumption: 550mW
• 1: 2 demultiplexed output
• 1/2 frequency-divided clock output (with reset function)
• Compatible with ECL, PECL and TTL digital input levels
• TTL output "H" levels: 2.8V (Typ.)
• Output voltage control function (VOCLP)
• +3.3V line CMOS IC direct connecting available
• Single +5V power supply operation available
• Ultra-small surface mounting package (48-pin LQFP)


Application

• LCD monitors
• LCD projectors


Pinout

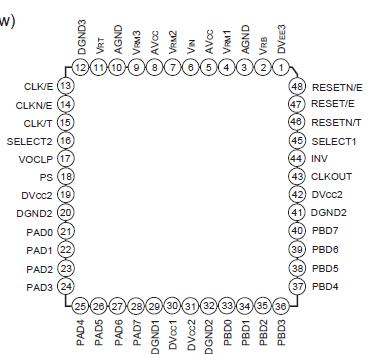

Connection Diagram


Specifications

• Supply voltage AVCC, DVCC1, DVCC2 .............0.5 to +7.0 V
                           DGND3 ...................................0.5 to +7.0 V
                           DVEE3 .....................................7.0 to +0.5 V
                           DGND3 DVEE3 .....................0.5 to +7.0 V
• Analog input voltage VIN .......................VRT 2.7 to AVCC V
• Reference input voltage VRT ............................2.7 to AVCC V
                                         VRB ...................VIN 2.7 to AVCC V
                                        |VRT VRB| ..............................2.5 V
• Digital input voltage ECL/PECL input pin... DVEE3 0.5 to DGND3 + 0.5 V
                                   TTL input pin .............DGND1 0.5 to DVCC1 + 0.5 V
                                   SELECT2 pin ..............DGND1 0.5 to DVCC1 + 0.5 V
                                   VOCLP pin .................DGND1 0.5 to DVCC1 + 0.5 V
                                   VID*1 (|***/E ***N/E|) ..............2.7 V
• Storage temperature Tstg ............................65 to +150 °C
• Allowable power dissipation PD .....................................1.4 W
(when mounted on a two-layer glass fabric base epoxy board with dimentions of 50mm ´ 50mm, 1.6mm thick)


Description

The CXA3286R is an 8-bit high-speed flash A/D converter capable of digitizing analog signals at the maximum rate of 160MSPS. ECL, PECL or TTL can be selected as the digital input level in accordance with the application. The TTL digital output level allows 1: 2 demultiplexed output.
