CXA3250N

Features: • Low power consumption (5 V, 69 mA typ.)• Superior cross modulation• Balanced UHF oscillator (4 pins) with excellent oscillation stability• Supports both I2C and 3-wire bus modes• Automatic identification of 18, 19 or 27-bit control (during 3-wire bus mode)...

product image

CXA3250N Picture
See larger image
SeekIC No. : 004318360 Detail

CXA3250N: Features: • Low power consumption (5 V, 69 mA typ.)• Superior cross modulation• Balanced UHF oscillator (4 pins) with excellent oscillation stability• Supports both I2C and 3...

CXA3250N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3250N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption (5 V, 69 mA typ.)
• Superior cross modulation
• Balanced UHF oscillator (4 pins) with excellent oscillation stability
• Supports both I2C and 3-wire bus modes
• Automatic identification of 18, 19 or 27-bit control (during 3-wire bus mode)
• On-chip A/D converter (during I2C bus mode)
• On-chip high voltage drive transistor for charge pump
• Reference frequency selectable from 31.25, 50 or 62.5 kHz (when using a 4 MHz crystal)
• Low-phase noise synthesizer
• On-chip 4-output band switch (supports output voltages from 5 to 9 V)


Application

• TV tuners
• VCR tuners
• CATV tuners


Pinout

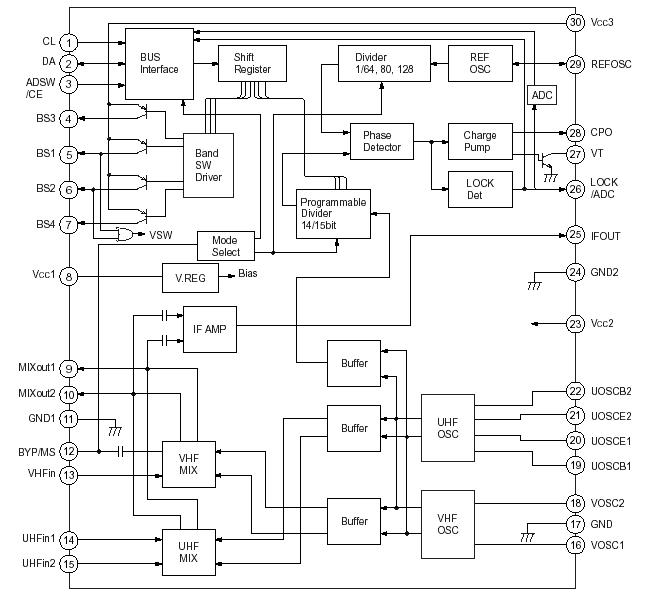

Connection Diagram


Specifications

• Supply voltage VCC1, VCC2                                0.3 to +5.5 V
                                  VCC3                                 0.3 to +10.0 V
• Storage temperature Tstg                              55 to +150 °C
• Allowable power dissipation PD                                   580 mW


Description

The CXA3250N is a monolithic TV tuner IC which integrates local oscillator and mixer circuits for VHF band, local oscillator and mixer circuits for UHF band, an IF amplifier and a tuning PLL onto a single chip, enabling further miniaturization of the tuner.
